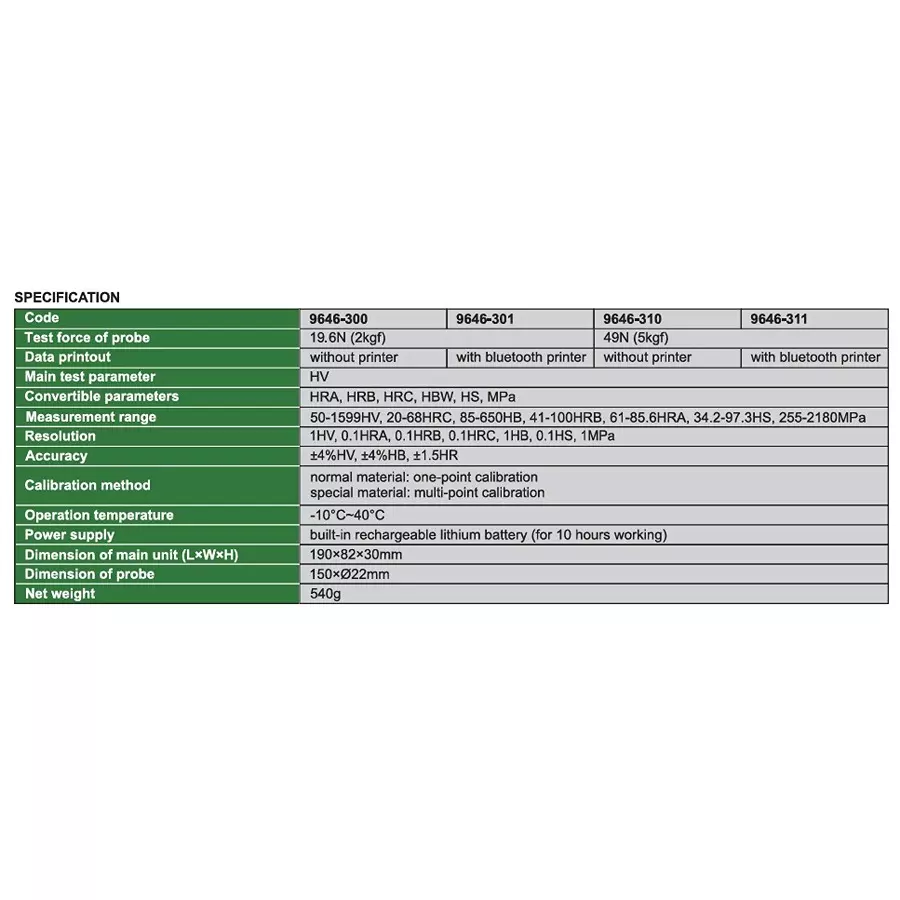

| Model No | 9646-310 |
| Measurement Range | 50-1599 HV, 20-68 HRC, 85-650 HB, 41-100 HRB, 61-85.6 HRA, 34.2-97.3 HS, 255-2180 MPa |
| Resolution | 1 HV, 0.1 HRA, 0.1 HRB, 0.1 HRC, 1 HB, 0.1 HS, 1 MPa |
| Accuracy | ±4% HV, ±4% HB, ±1.5 HR |
Model No |
9646-310 |
Measurement Range |
50-1599 HV, 20-68 HRC, 85-650 HB, 41-100 HRB, 61-85.6 HRA, 34.2-97.3 HS, 255-2180 MPa |
Resolution |
1 HV, 0.1 HRA, 0.1 HRB, 0.1 HRC, 1 HB, 0.1 HS, 1 MPa |
Accuracy |
±4% HV, ±4% HB, ±1.5 HR |
Power Supply |
In-Built Rechargeable Lithium Battery |
Type of Product |

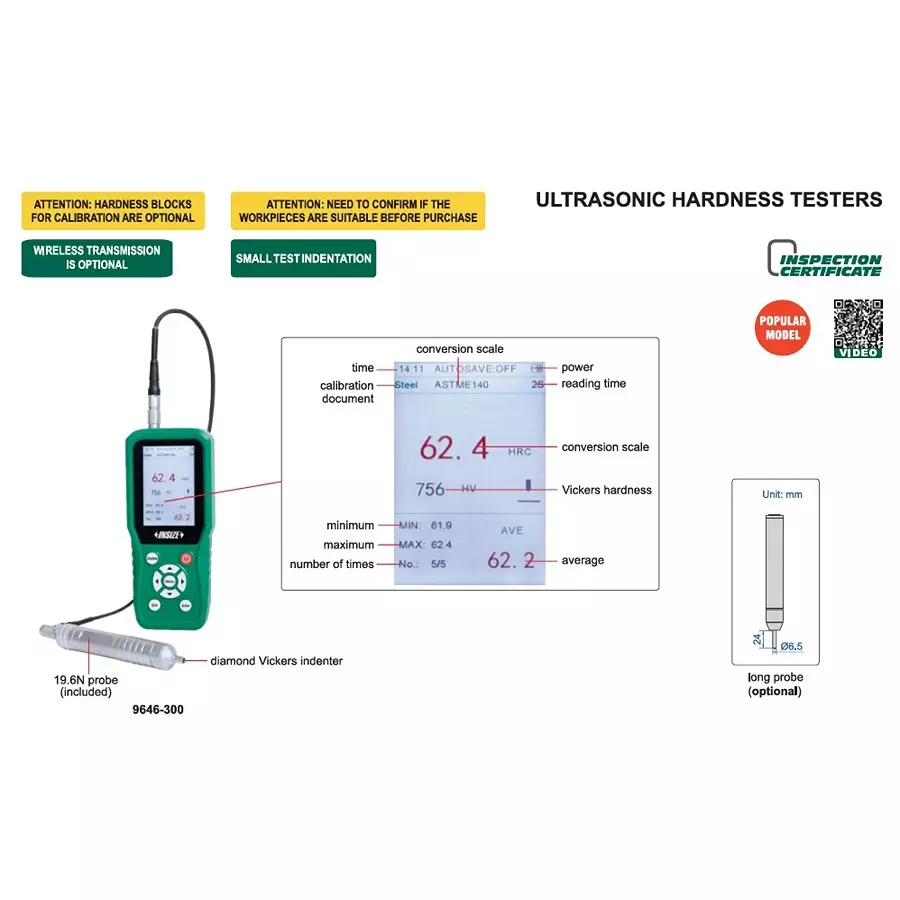

Ultrasonic Hardness Tester |
Dimension |
Main Unit: 190x82x30 mm, Probe: 150x22 mm |
Test Force |
Probe: 49 N |
Country of Origin |
China |
Operating Temperature |
-10°C to 40°C |
Printer |
Without Printer |
Name of Manufacturer/Packer/Importer |
INSZIE |
Net Weight |
540 g |
Test Parameter |
HV |
