| Efficiency (%) | 0.88 |
| Type of Product | Single Output Switching Power Supply |
| Working Temperature | -30 to +70°C |
| Over Voltage Protection | 13.8-17.2 V |
Efficiency (%) |
0.88 |
Type of Product |
Single Output Switching Power Supply |
Working Temperature |
-30 to +70°C |
Over Voltage Protection |
13.8-17.2 V |

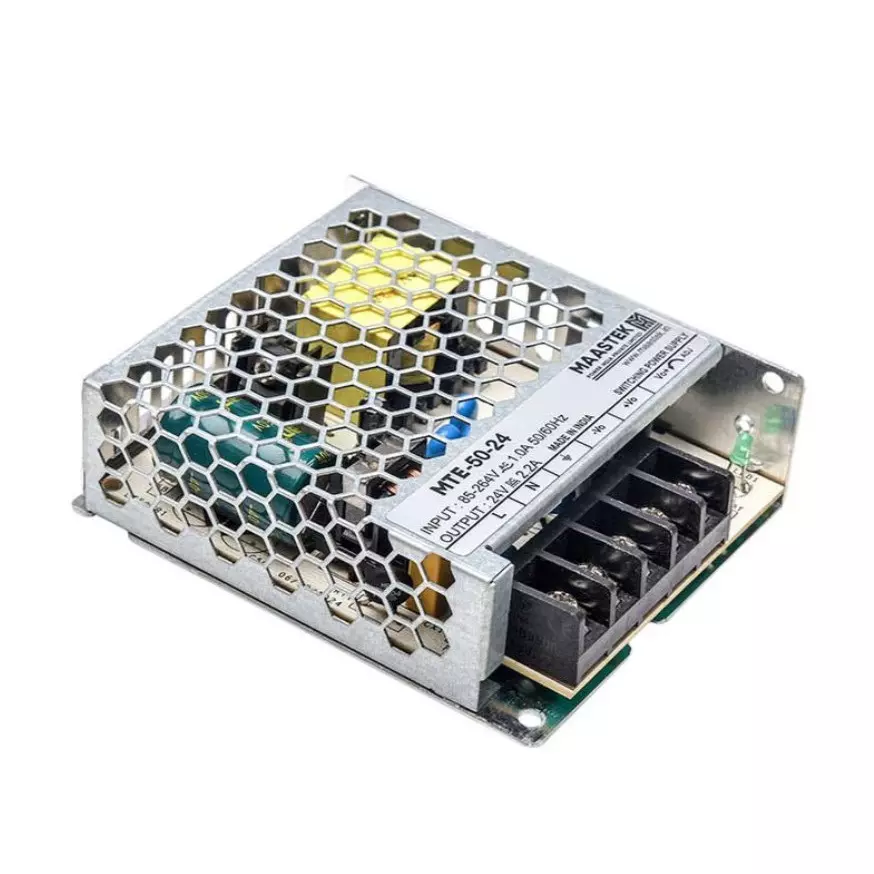

Model No |
MTE-50-24 |
Storage Temperature |
-40 to +85°C |
Storage Humidity |
10-95% RH |
Line Regulation |
±0.5% |
Load Regulation |
±0.5% |
Voltage Tolerance |
±1.0% |
Working Humidity |
20-90% RH non-condensing |
Frequency Range |
47-63 Hz |
Rated Current |
2.2 A |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Ripple & Noise (max) |
150 mVp-p |
Rated Power |
52.8 W |
Temperature coefficient |
±0.03%/°C (0-50°C) |
Voltage (Dc) |
24 V |
Inrush Current |
45 A/230 VAC |
Setup and Rise Time |
2000 ms, 30 ms/115 VAC at Full Load |
Current Range |
0-2.2 A |
Leakage Current |
<0.75 mA / 240 VAC |
Voltage Adjustment Range |
21.6-28.8 V |
