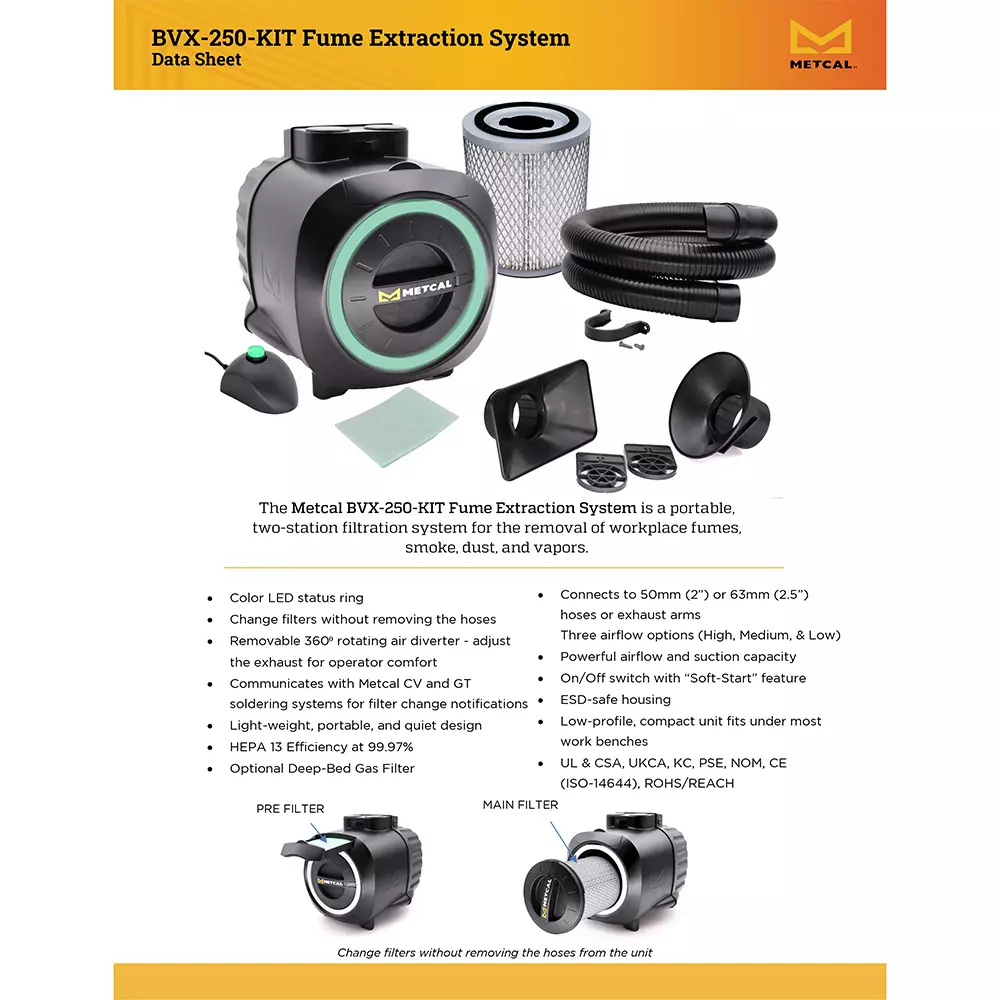

METCAL Fume Extraction System Kit 1 Phase 150 W Power 45 cfm Flow Rate, BVX-250-KIT

Name: METCAL Fume Extraction System Kit 1 Phase 150 W Power 45 cfm Flow Rate, BVX-250-KIT
Brand: METCAL
SKU: WEL.SOL.145532728
Price: 123899 INR
Availability: InStock

Visit the METCAL Store

EMI starts at ₹11008/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Weight	12 lbs. / 5.5 Kg (approx.)

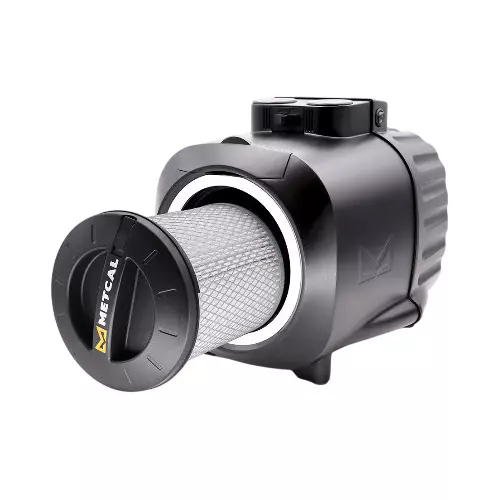

Features	• Color LED status ring • Change filters without removing the hoses • Removable 360⁰ rotating air diverter - adjust the exhaust for operator comfort • Communicates with Metcal CV and GT soldering systems for filter change notifications • Light-weight, portable, and quiet design • HEPA 13 Efficiency at 99.97% • Optional Deep-Bed Gas Filter • Connects to 50mm (2”) or 63mm (2.5”) hoses or exhaust arms Three airflow options (High, Medium, & Low) • Powerful airflow and suction capacity • On/Off switch with “Soft-Start” feature • ESD-safe housing • Low-profile, compact unit fits under most work benches • UL & CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), ROHS/REACH
Dimension	268 x 400 x 320 mm
Voltage	100-240 VAC

More METCAL Smoke Absorber products More Smoke Absorber products

7 Days Return Policy

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Weight	12 lbs. / 5.5 Kg (approx.)
Features	• Color LED status ring • Change filters without removing the hoses • Removable 360⁰ rotating air diverter - adjust the exhaust for operator comfort • Communicates with Metcal CV and GT soldering systems for filter change notifications • Light-weight, portable, and quiet design • HEPA 13 Efficiency at 99.97% • Optional Deep-Bed Gas Filter • Connects to 50mm (2”) or 63mm (2.5”) hoses or exhaust arms Three airflow options (High, Medium, & Low) • Powerful airflow and suction capacity • On/Off switch with “Soft-Start” feature • ESD-safe housing • Low-profile, compact unit fits under most work benches • UL & CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), ROHS/REACH
Dimension	268 x 400 x 320 mm
Voltage	100-240 VAC
Type of Product	Fume Extraction System Kit
Model No	BVX-250-KIT
Power	150 W
Frequency	50/60 Hz
Country of Origin	China
Name of Manufacturer/Packer/Importer	Mectronics Marketing Services
Static Pressure	1743 Pa (7" WC)
Maximum Airflow	297 m3/h (175 cfm)
Safety compliance	UL, CSA, CE. TUV
Package Contains	1 x Fume Extraction System, 1 x HEPA 13/Gas Filter, (1) RPS-1 Remote Power Switch, (2) BVX-250-ARML 5’ Arm, (1) BVX-NOZR Rectangular Nozzle, (1) BVX-NOZC Circular Nozzle, (2) FN-BVX Nozzle Filters
Flow Rate	2 x 75 m3/h (45 cfm)
Phase	1 Phase
Noise Level	50 dBA (at medium setting) (approx.)
Dimension (inch)	10.5 x 16 x 13 inch
