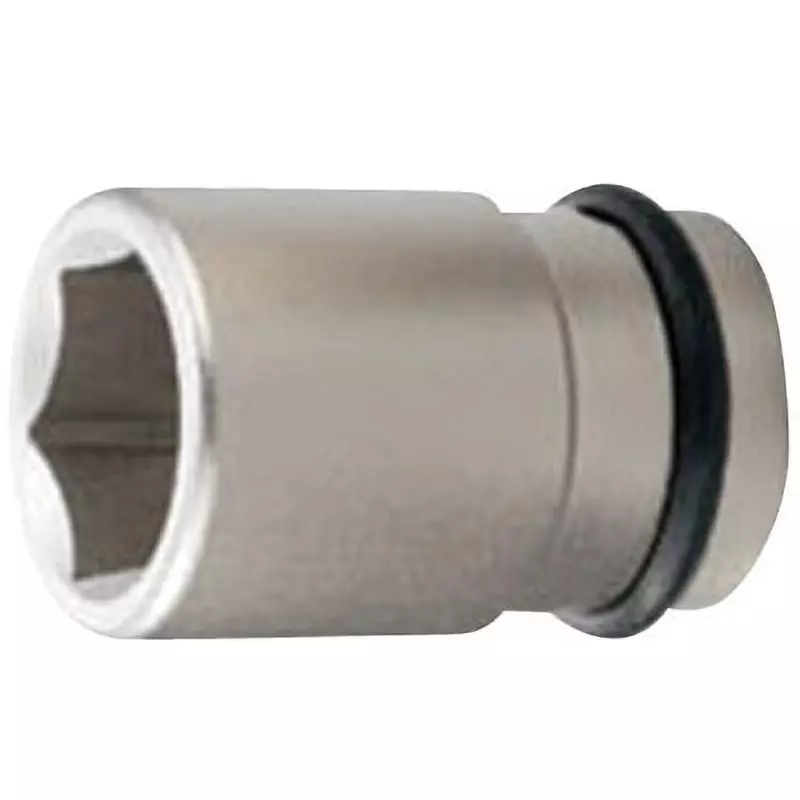

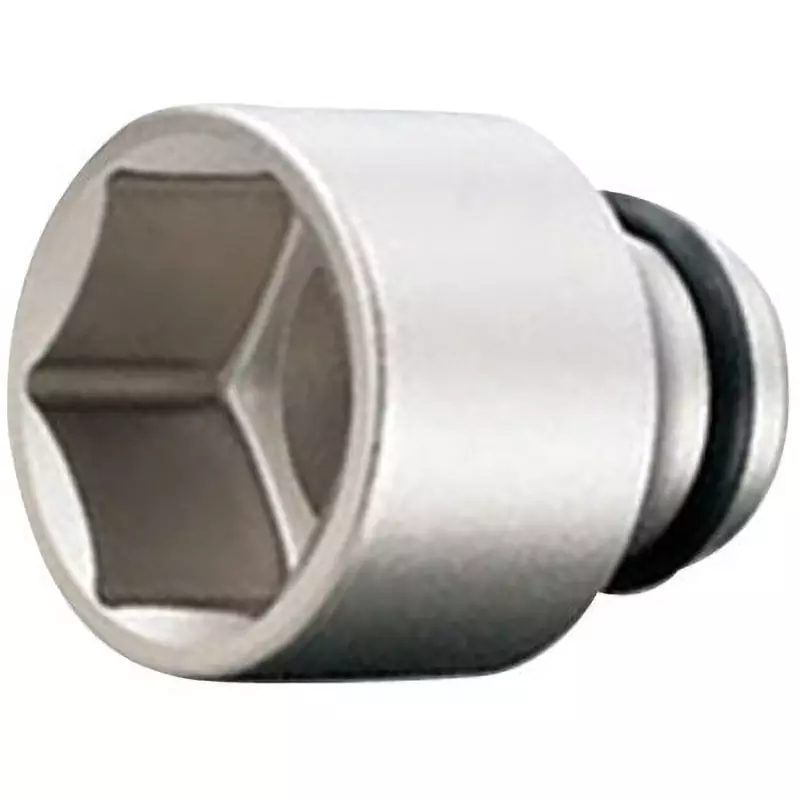

| Type of Product | Impact Socket Electroless Nickel Plating |
| Product Code | 3NV-22 |
| Name of Manufacturer/Packer/Importer | TONE Co., Ltd. |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Impact Socket Electroless Nickel Plating |
Product Code |
3NV-22 |
Name of Manufacturer/Packer/Importer |
TONE Co., Ltd. |
Country of Origin |
Japan |
Mass (g) |
75 |
Square Drive (mm) |
9.5mm |
Trusco Part No. |
356-6366 |
Pack of |
1 Pcs |
Monotaro ID |
34878234 |
Suitable For |
Pin/P3016S O-ring/RINGP16S |
RoHS Directive |
Correspondence |
Square Drive (Inch) |
3/8 inch |
Overall Length (mm) |
35 |
Hex Size, Across Flats (mm) |
22 |
Width Across Flats |
22 mm |

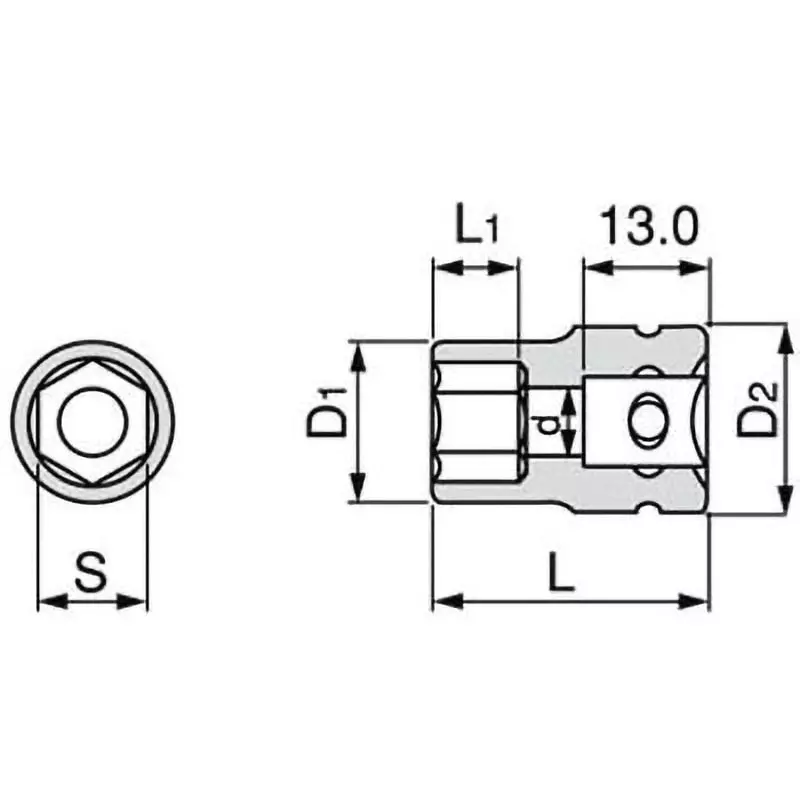

Dimension L (mm) |
35 |
Socket Shape |
Hexagon |
Dimension D1 (mm) |
30 |
Dimension D2 (mm) |
19 |
Dimension L1 |
14 mm |
Import Country |
Direct Import from Japan |
