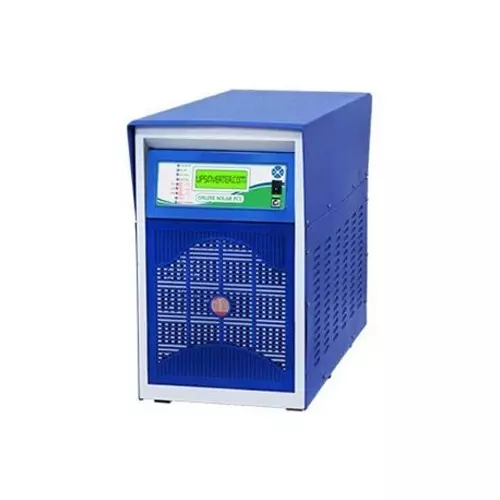

| Type of Product | Power Conditioning Unit |
| Model No | APP5096 |
| Rating | 5 kVA/96 V |
| Operating Temperature | 0-50°C |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Power Conditioning Unit |
Model No |
APP5096 |
Rating |
5 kVA/96 V |
Operating Temperature |
0-50°C |
Charging Type |
MPPT |
Input Voltage Range |
160-400 V |
Country of Origin |
India |
Protection |
Overload, Battery Low, Battery High, Output Low, Output High, Output Short Ckt., Overheat, Under Frequency, Over Frequency, Solar Panel Reverse |
Switching Element |
IGBT |
Grid Charging |
Enable/Disable |
Output Phase |
1 |
Name of Manufacturer/Packer/Importer |
Fujiyama Power Systems Limited |
Cooling |
Temp Controlled, Fan |
Voltage (Dc) |
96 V |
System Capacity |
5 kVA |
Nominal Output Voltage |
220 V |
Operating Mode |
Smart/PCU/Hybrid |
Dimension (lxwxh) |
24 x 13 x 23 mm |
Standard Compliance |
IP21 |
Noise (db) |
50dB |
