Ships within 25 days
View
View
View
View

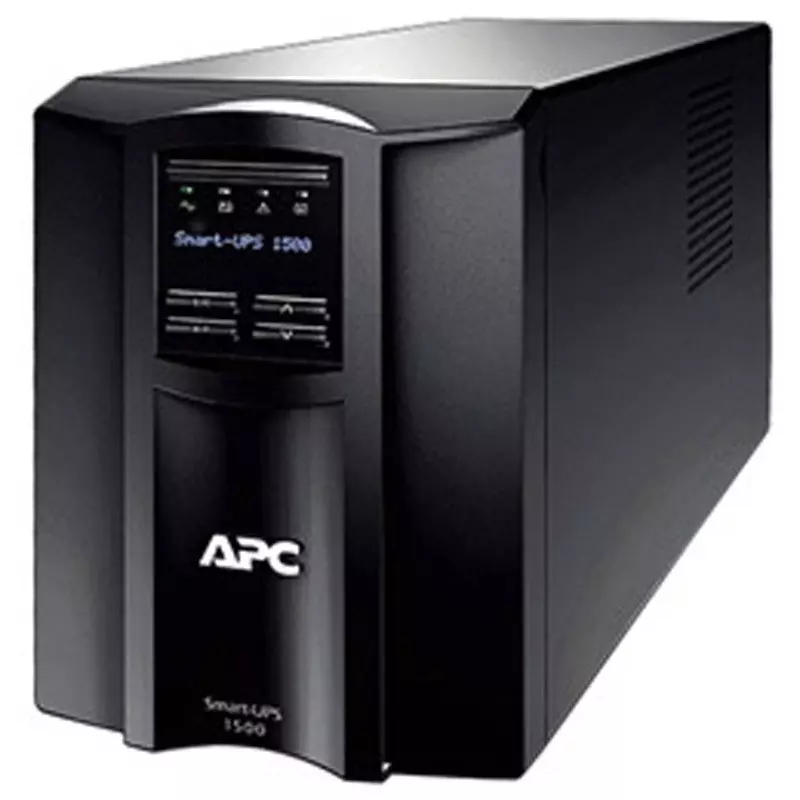

| Type of Product | APC Smart-UPS |
| Model No | SMT1500J |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Arrow & Harmony (Schneider Electric) |
Type of Product |
APC Smart-UPS |
Model No |
SMT1500J |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Monotaro ID |
6198021 |
Import Country |
Direct Import from Japan |
Recharging Time(hours) |
Approximately 4 hours * Charging time to 90% |
Specifications |
●Rated output frequency: 50/60Hz ±2%●Number of output outlets (backup): 8●Case: Tower type●Input outlet shape: NEMA 5-15P●Output waveform when operating on battery: Sine wave●Number of batteries: 1●Power management software (included software): None (sold separately)●Power management software compatible OS: Check <a href="https://www.apc.com/jp/ja/faqs/FA53720/" rel="noopener nofollow" target="_blank">the compatible OS table</a> ●Output voltage when operating on battery: 100V●Number of output phases: Single-phase 2-wire with earth●Backup time (at full load): 6 minutes●Switchover time to battery: 5 to 10 ms (normal)●Maximum output capacity (VA): 1500VA●Battery type: Small sealed lead-acid battery (long life)●Rated input frequency: 50/60 (automatic detection) (Hz)●Output outlet shape: NEMA 5-15R●Main unit size (HxWxD): Device dimensions 225 (H)x172 (W)x439 (D) mm Packing dimensions: 376 (H)x328 (W)x595 (D) mm. Rated input voltage: AC 100V. Surge protection: Yes. Other environmental and safety standards: EMC standard VCCI Class A / safety standard UL 1778. Maximum output capacity (W): 980W. Input phases: Single-phase 2-wire with earth. Output frequency when operating on battery: 50/60Hz. |
Output Capacity (VA / W) |
1200/980 VA / W |
RoHS Directive |
Correspondence |
Rated Output Voltage |
AC 100V |
Mass of Main Unit (kg) |
Net weight approx. 26 g Packed weight approx. 28 g |
Operation Pattern |
Line interactive method |
Power Consumption (W) |
39/177 (normal/maximum) |
Safety Standard |
UL 1778 *EMC standard VCCI ClassA |
