| Type of Product | High Heat Storage Digital Temperature Control Soldering Iron |
| Model No | PX-480E |
| Heater | Ceramic heater |
| Ripple Temperature | ± 5℃ at no load |
Type of Product |
High Heat Storage Digital Temperature Control Soldering Iron |
Model No |
PX-480E |
Heater |
Ceramic heater |
Ripple Temperature |
± 5℃ at no load |
Type |
3-core plug type |
Temperature Setting Range |
200-500℃ |
Input Power |
AC100 V |
Country of Origin |
Japan |
Monotaro ID |
64536756 |
Trusco Part No. |
659-8283 |
Leakage Voltage (mV) |
Less than 2 |
Included Components |

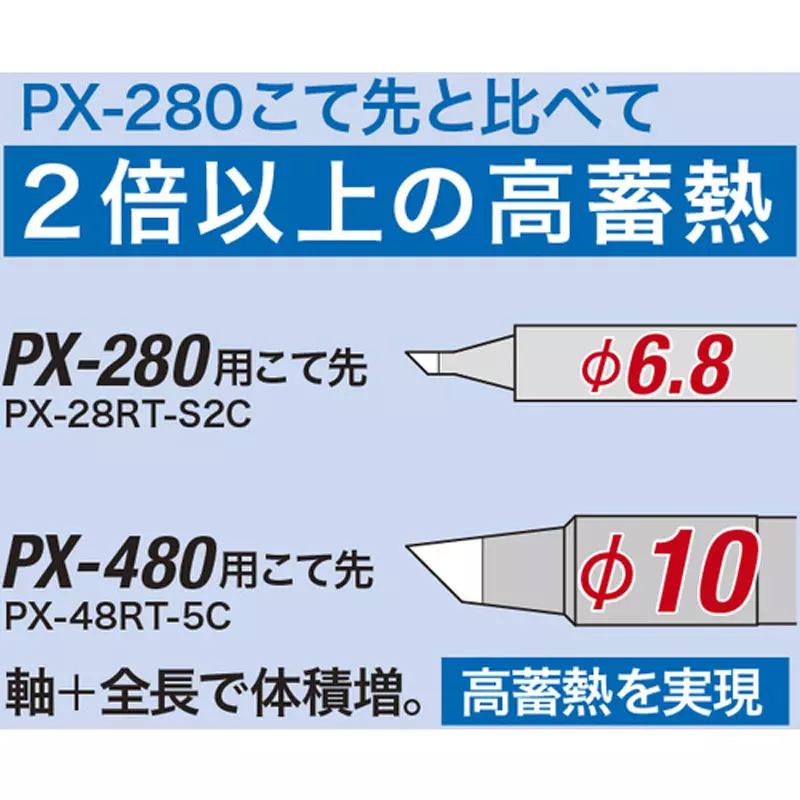

Soldering tip (PX-48RT-5C) |
Name of Manufacturer/Packer/Importer |
Taiyo Electric Industry Co., Ltd. |
Pack of |
1 Pcs |
Import Country |
Direct Import from Japan |
Mass (g) |
85 |
Power Consumption (W) |
80 |
Overall Length (mm) |
229 |
RoHS Directive |
Correspondence |
Power Cable (m) |
1.5 (3-core cord with earth pin plug) |
Insulation_Resistance (MΩ) |
100MΩ or more (500V DC) |
Earth Resistance |
2Ω or less |
