| Type of Product | Board To Wire Connector |
| Model No | PS-10PE-D4LT1-B1E |
| Material | Insulator: Glass-filled PBT (UL94V-0, black) <br> Socket housing: PBT with glass (UL94V-0, black) <br> Socket contact: Phosphor bronze pin contact (post): Copper alloy |
| Rated Current (A) | 3 |
Type of Product |
Board To Wire Connector |
Model No |
PS-10PE-D4LT1-B1E |
Material |
Insulator: Glass-filled PBT (UL94V-0, black) <br> Socket housing: PBT with glass (UL94V-0, black) <br> Socket contact: Phosphor bronze pin contact (post): Copper alloy |
Rated Current (A) |
3 |
Pack of |
1 Pcs |
Suitable For |
Socket housing: PS-D4C10 |
Country of Origin |
Japan |
No. of Pole |
10 |
Finish Type |
Socket contact: contact / gold plating on nickel (0.1μm or more), others / gold flash pin contact on nickel (post): contact / gold plating on nickel (0.1μm or more), others / tin or tin alloy plating on nickel |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Operating Temperature Range |
-55 to +85°C |
Control |
Vertical / Parallel |
Monotaro ID |
8517677 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
418-0739 |
Insulation_Resistance (MΩ) |
1000 |
Contact Resistance |
20 mΩ or less |
Withstand Voltage |
AC500Vr.ms (1 minute) |
Contact Spacing (mm) |
2.54 pitch, 2 rows |
Connector Shape |
Board side: Right angle / Pin header Box type |
Circuit Board Connection |
Soldering (through hole) |
Terminal Connection Type |
Wire side: Pressure welding / crimp board side: Solder (through hole) |

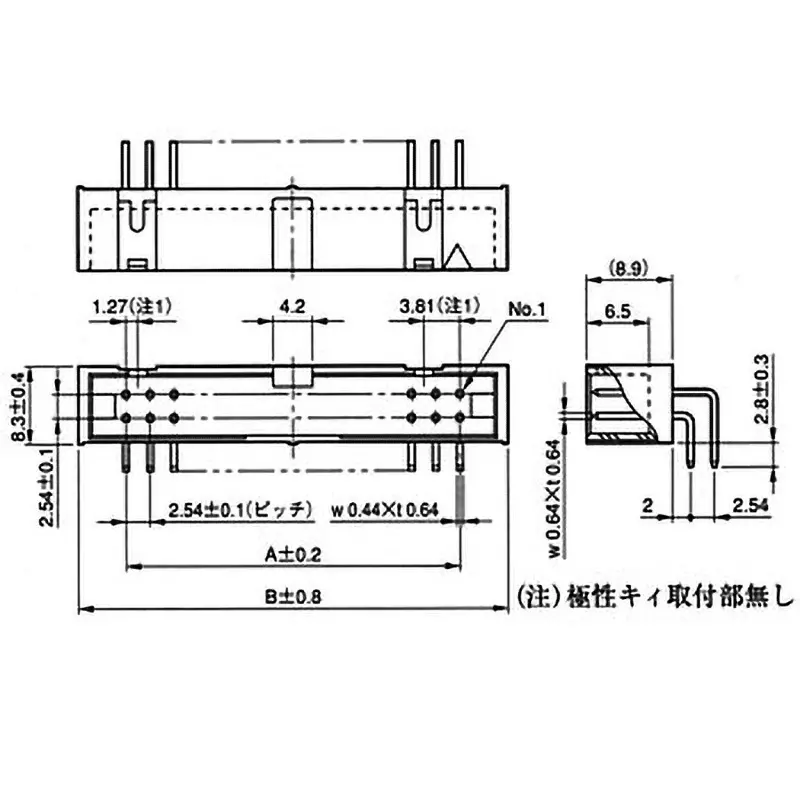

Dimensions B (mm) |
20.2 |
Suitable Wire |
Pressure welding: 1.27mm pitch FRC (AWG # 28) <br> Crimp: Twisted wire equivalent to AWG # 22 to # 36 |
Dimensions A (mm) |
10.16 |
Suitable Circuit Board Thickness (mm) |
1.6 |
