| Type of Product | Board-To-Wire Connector Ps Series Clamp Hood |
| Model No | PS-HD26-R |
| Material | Hood: ABS resin (black) clamp saddle screw, washer nut: steel |
| Pack of | 1 Pcs |
Type of Product |
Board-To-Wire Connector Ps Series Clamp Hood |
Model No |
PS-HD26-R |
Material |
Hood: ABS resin (black) clamp saddle screw, washer nut: steel |
Pack of |
1 Pcs |
Suitable For |
Socket housing: PS-D4C26 |
Country of Origin |
Japan |
No. of Pole |
26 poles |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Operating Temperature Range |
-55to+85°C |
Control |
Vertical / Parallel |
Monotaro ID |
8517826 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
418-1972 |
Insulation_Resistance (MΩ) |
1000 |
Contact Resistance |
10 mΩ |
Withstand Voltage |
AC1000Vr.ms (1 minute) |
Contact Spacing (mm) |
2.54 |
Connector Shape |
Clamp hood |

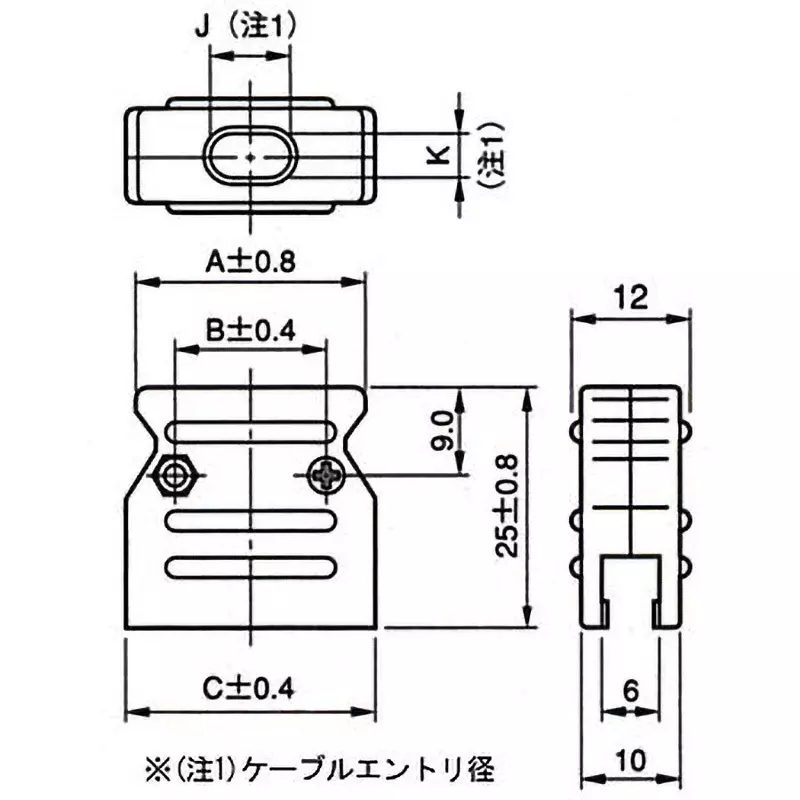

Dimensions C (mm) |
26 |
Terminal Connection Type |
Wire side: Crimp board side: Solder (through hole) |
Dimensions B (mm) |
16 |
Suitable Wire |
AWG # 22 to # 36 equivalent stranded wire |
Dimensions A (mm) |
24 |
Suitable Circuit Board Thickness (mm) |
1.6 to 2.0 |
Dimension K |
4.4 mm |
Dimension J (mm) |
9 |
