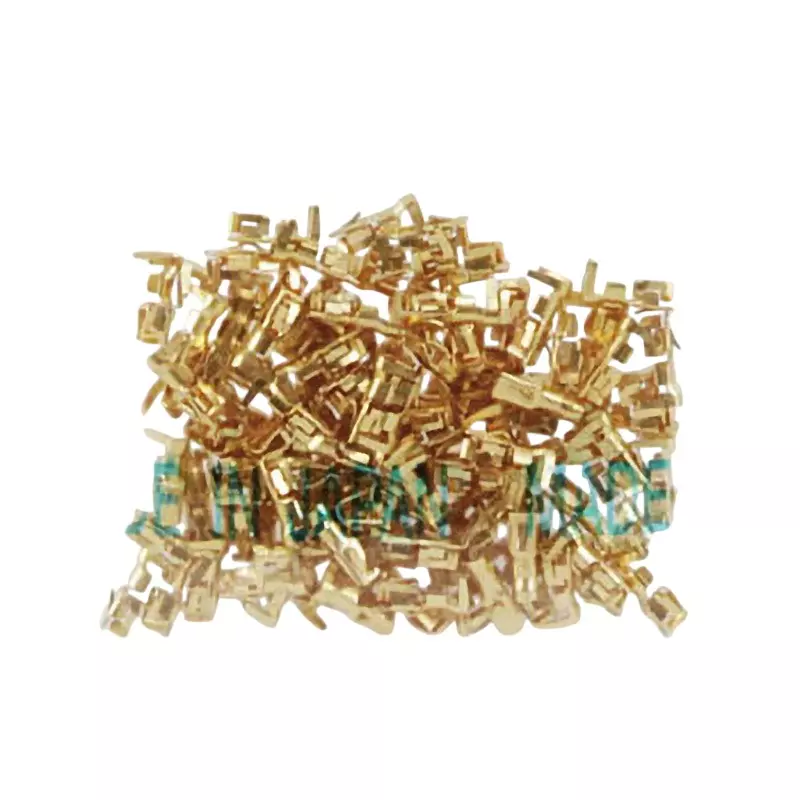

| Type of Product | Board-To-Wire Connection Connector |
| Model No | PS-SLA-C2-1-100 |
| Material | Insulator: 66 nylon (UL94V-0, black) <br> Contact: Copper alloy socket Housing: PBT (UL94V-0, black) <br> Contact: Phosphor bronze for springs |
| Rated Current (A) | 3 |
Type of Product |
Board-To-Wire Connection Connector |
Model No |
PS-SLA-C2-1-100 |
Material |
Insulator: 66 nylon (UL94V-0, black) <br> Contact: Copper alloy socket Housing: PBT (UL94V-0, black) <br> Contact: Phosphor bronze for springs |
Rated Current (A) |
3 |
Shape |
Single item |
Pack of |
100 Pcs |
Suitable For |
Pin header: PS-4PLB-D4T1-FL1E, PS-4PLB-D4LT1-FL1E <br> Socket housing: PS-4SLA-D4C2 |
Country of Origin |
Japan |
Finish Type |
(Contact part) Gold plating on nickel |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Operating Temperature Range |
-40to+85°C |
Control |
Vertical / Parallel |
Monotaro ID |
8517871 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
418-2031 |
Insulation_Resistance (MΩ) |
1000 |
Contact Resistance |
10 mΩ |
Withstand Voltage |
AC1000Vr.ms (1 minute) |
Contact Spacing (mm) |
2.54 |
Connector Shape |

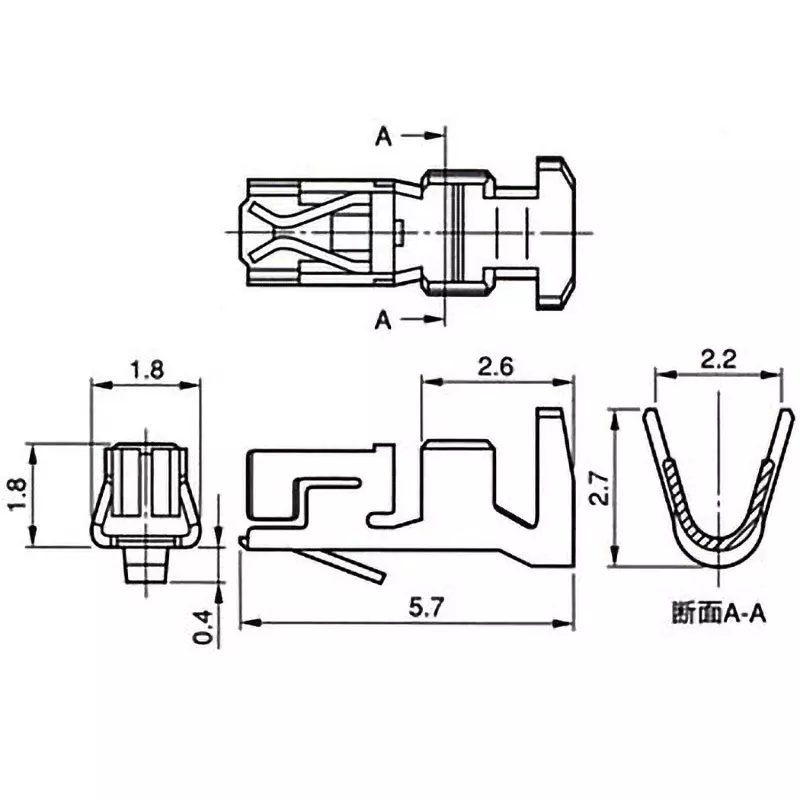

Socket contact |
Terminal Connection Type |
Wire side: Crimp board side: Solder (through hole) |
Suitable Wire |
AWG: Twisted wire coating outer diameter equivalent to # 28 to # 24: Φ1.0 to Φ1.6mm |
Suitable Tools |
Crimping tool: CT150-2-PSSLA-B (manual type), CT350 type (semi-automatic crimping machine), ET-PS-SLA-C2 (contact extraction tool) |
Connection Method |
Crimping |
Suitable Circuit Board Thickness (mm) |
1.6 |
