| Type of Product | Board-To-Wire Connection Connector |
| Model No | PS-15SD-S4C2 |
| Material | Socket housing: PBT with glass |
| Rated Current (A) | 3 |
Type of Product |
Board-To-Wire Connection Connector |
Model No |
PS-15SD-S4C2 |
Material |
Socket housing: PBT with glass |
Rated Current (A) |
3 |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
15 poles |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Operating Temperature Range |
-55 to +85°C |
Mass (g) |
2.4 |
Monotaro ID |
49026957 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
418-0925 |
Insulation Resistance |
1000MΩ or more |
Insulation_Resistance (MΩ) |
1000 |
Contact Resistance |
less than 10 mΩ |
Withstand Voltage |
AC1000V / 1 minute |
Contact Spacing (mm) |
2.54 |
Connector Shape |
Socket housing |

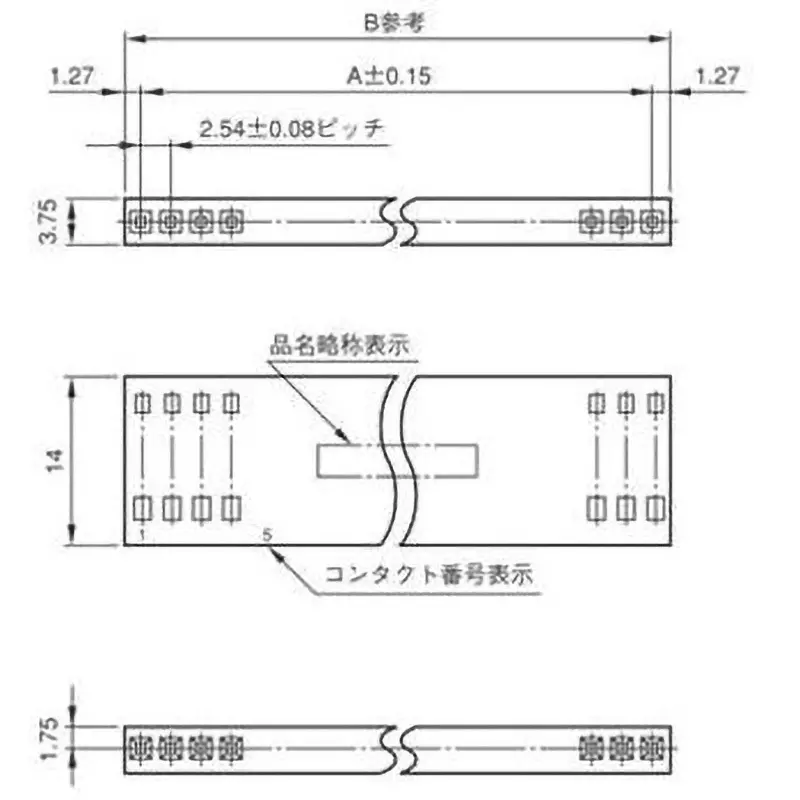

Dimensions B (mm) |
38.1 |
Dimensions A (mm) |
35.56 |
Single or Double Strand |
One-row type |
