| Type of Product | Board-To-Wire Connector Ps Series |
| Model No | PS-D4C26 |
| Material | Insulator: Glass-filled PBT (UL94V-0, black) <br> Socket housing: PBT with glass (UL94V-0, black) <br> Socket contact: Phosphor bronze pin contact (post): Copper alloy |
| Rated Current (A) | 3 |
Type of Product |
Board-To-Wire Connector Ps Series |
Model No |
PS-D4C26 |
Material |
Insulator: Glass-filled PBT (UL94V-0, black) <br> Socket housing: PBT with glass (UL94V-0, black) <br> Socket contact: Phosphor bronze pin contact (post): Copper alloy |
Rated Current (A) |
3 |
Pack of |
1 Pcs |
Suitable For |
Pin header: PS-26PE-D4T1-B1E, PS-26PE-D4LT1-B1E <br> Clamp hood: PS-HD26-R |
Country of Origin |
Japan |
No. of Pole |
26 poles |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Operating Temperature Range |
-55to+85°C |
Control |
Vertical / Parallel |
Monotaro ID |
8517747 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
418-1867 |
Insulation_Resistance (MΩ) |
1000 |
Contact Resistance |
10 mΩ |
Withstand Voltage |
AC1000Vr.ms (1 minute) |
Contact Spacing (mm) |
2.54 |
Connector Shape |
Socket housing |
Terminal Connection Type |
Wire side: Crimp board side: Solder (through hole) |

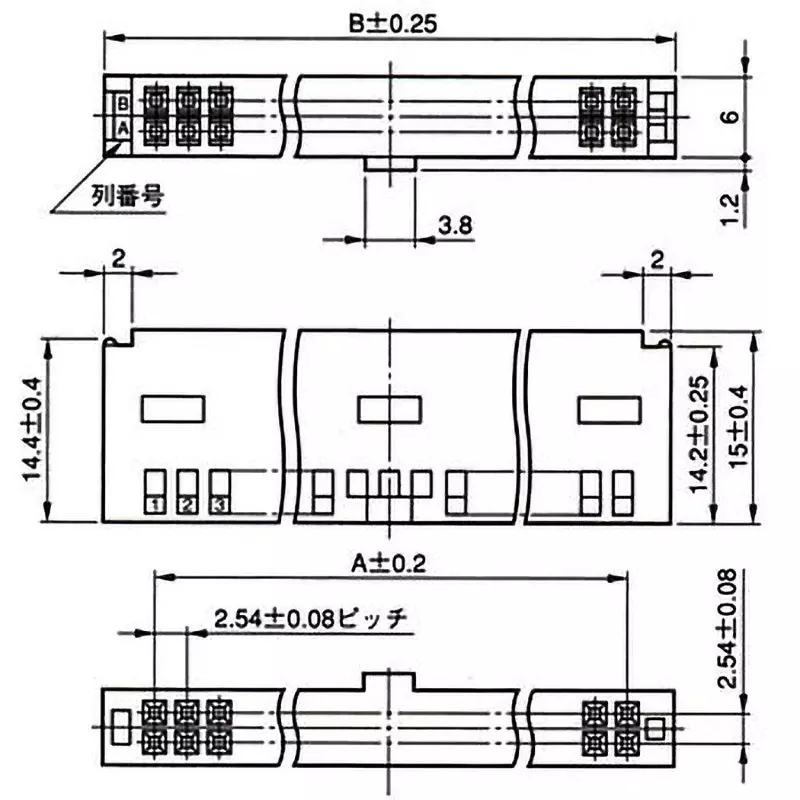

Dimensions B (mm) |
37.58 |
Suitable Wire |
AWG # 22 to # 36 equivalent stranded wire |
Dimensions A (mm) |
30.48 |
Suitable Circuit Board Thickness (mm) |
1.6 to 2.0 |
Key |
1 place |
