| Type of Product | Board-To-Wire Connection Connector |
| Model No | PS-4SLA-D4C2 |
| Material | Insulator: 66 nylon (UL94V-0, black) <br> Contact: Copper alloy socket Housing: PBT (UL94V-0, black) <br> Contact: Phosphor bronze for springs |
| Rated Current (A) | 3 |
Type of Product |
Board-To-Wire Connection Connector |
Model No |
PS-4SLA-D4C2 |
Material |
Insulator: 66 nylon (UL94V-0, black) <br> Contact: Copper alloy socket Housing: PBT (UL94V-0, black) <br> Contact: Phosphor bronze for springs |
Rated Current (A) |
3 |
Pack of |
1 Pcs |
Suitable For |
Pin header: PS-4PLB-D4T1-FL1E, PS-4PLB-D4LT1-FL1E <br> Socket contact: PS-SLA-C2-1-100 |
Country of Origin |
Japan |
No. of Pole |
4 poles |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Operating Temperature Range |
-40to+85°C |
Control |
Vertical / Parallel |
Monotaro ID |
37640443 |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
1000 |
Contact Resistance |
10 mΩ |
Withstand Voltage |
AC1000Vr.ms (1 minute) |
Contact Spacing (mm) |
2.54 |
Connector Shape |
Socket housing |

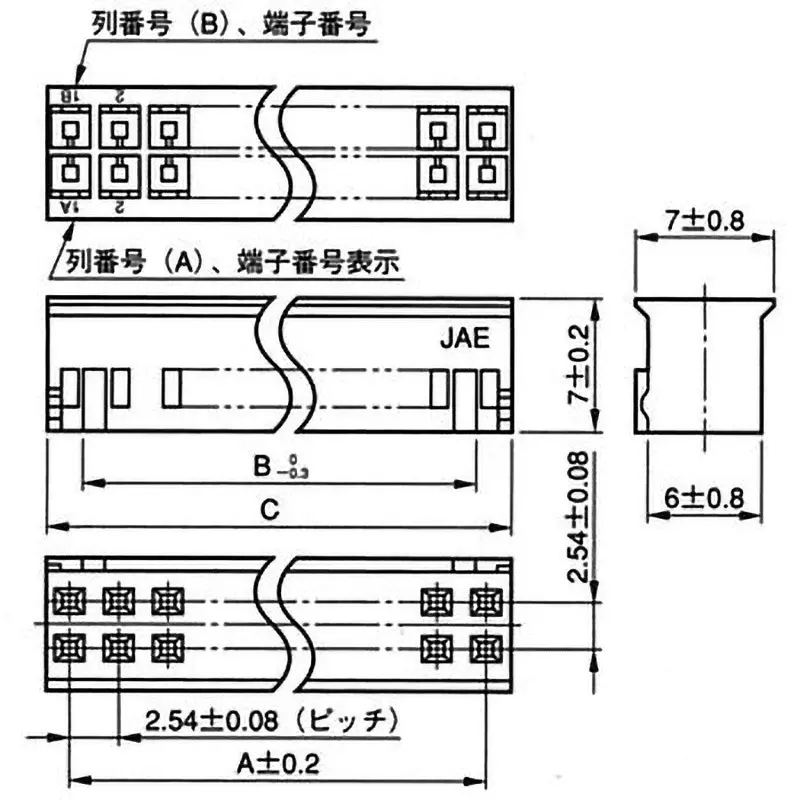

Dimensions C (mm) |
5.08 |
Terminal Connection Type |
Wire side: Crimp board side: Solder (through hole) |
Dimensions B (mm) |
1.18 |
Suitable Wire |
AWG: Twisted wire equivalent to # 28 to # 24 |
Dimensions A (mm) |
2.54 |
Suitable Circuit Board Thickness (mm) |
1.6 |
