| Type of Product | Board To Wire Connection Connector |
| Model No | 030-51304-001 |
| Material | Phosphor bronze |
| Rated Current (A) | 3 |
Type of Product |
Board To Wire Connection Connector |
Model No |
030-51304-001 |
Material |
Phosphor bronze |
Rated Current (A) |
3 |
Shape |
Single item |
Pack of |
50 Pcs |
Suitable For |
Socket housing: PS- * SD-S4C2, PS- * SD-D4C2, PS-D4C * |
Country of Origin |
Japan |
Finish Type |
Contact part: Gold plating on nickel (0.1μm or more) <br> Other: Gold flash over nickel |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Operating Temperature Range |
-55 to +85°C |
Control |
Vertical / Parallel |
Monotaro ID |
32624322 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
417-5999 |
Insulation_Resistance (MΩ) |
1000 |
Contact Resistance |
less than 10 mΩ |
Withstand Voltage |
AC1000Vr.ms (1 minute) |
Contact Spacing (mm) |
2.54 pitch, 2 rows |
Connector Shape |
Socket contact |

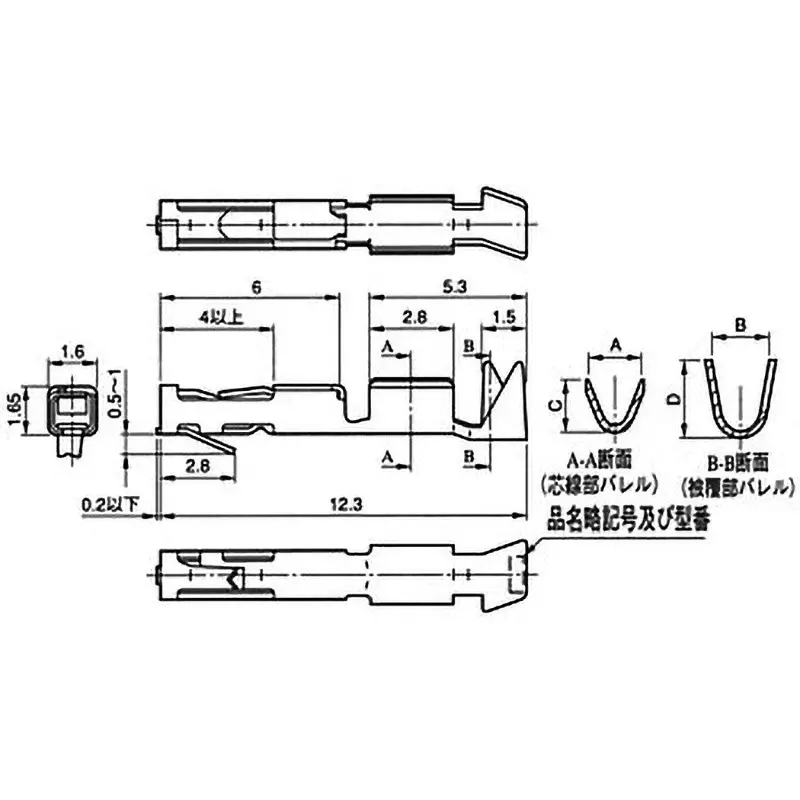

Dimensions C (mm) |
1.6±0.3 |
Terminal Connection Type |
Wire side: Crimp board side: Solder (through hole) |
Dimensions B (mm) |
1.8±0.3 |
Suitable Wire |
AWG: # 28 to # 24 (stranded wire) <br> Wire cross-sectional area: 0.08 to 0.20mm <sup>2</sup> (stranded wire) <br> Coating outer diameter: Φ0.8 to Φ1.2 |
Suitable Tools |
Crimp termination tool: CT150-1-PSSF (manual type) |
Dimensions D (mm) |
2.4±0.3 |
Dimensions A (mm) |
1.6±0.3 |
