| Type of Product | Board To Wire Connector |
| Model No | PS-10SD-S4TS1-1 |
| Material | Contact: Copper alloy, Insulator: PBT with glass (UL94V-0) |
| Color | Insulator: Black |
Type of Product |
Board To Wire Connector |
Model No |
PS-10SD-S4TS1-1 |
Material |
Contact: Copper alloy, Insulator: PBT with glass (UL94V-0) |
Color |
Insulator: Black |
Rated Current (A) |
3 |
Pack of |
1 Pcs |
Suitable For |
Board thickness: 1.6mm |
Country of Origin |
Japan |
No. of Pole |
10 |
Finish Type |
Contact part: Gold plating over nickel, Board mounting part: Gold flash plating over nickel |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Monotaro ID |
41197992 |
Import Country |
Direct Import from Japan |
Specifications |
One-row type |
Insulation_Resistance (MΩ) |
1000 |
Withstand Voltage |
AC1000Vrms |
Contact Spacing (mm) |
2.54 |
Connector Shape |
Socket |
Circuit Board Connection |
Soldering (through hole) |

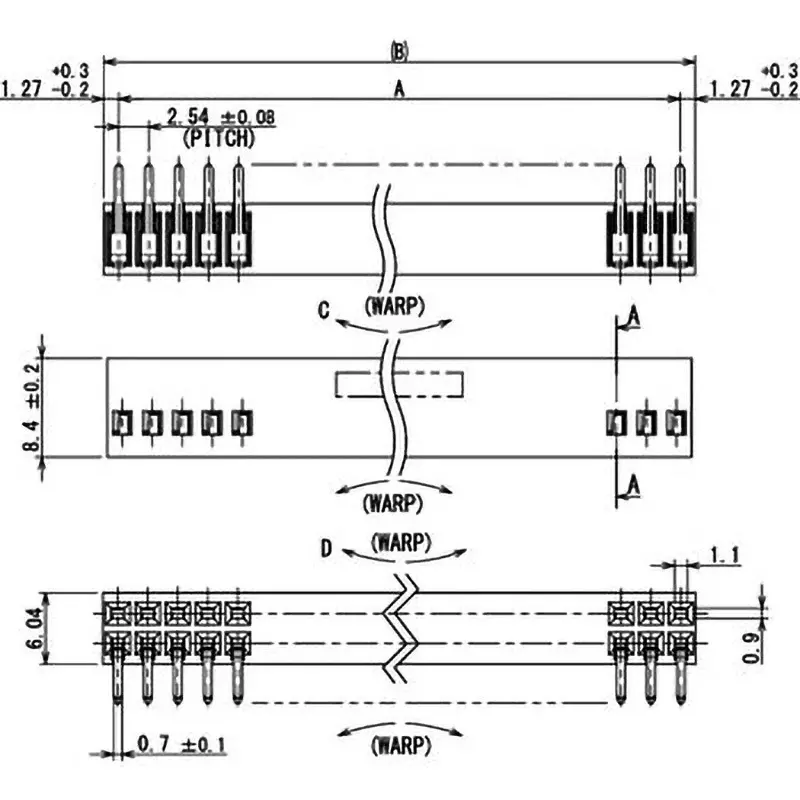

Dimensions B (mm) |
25.4 |
Dimensions A (mm) |
22.86 |
Through Hole |
Φ0.9mm |
Contact Shape |
Socket |
Implementation method |
Soldering (through hole) |
