Ships within 25 days
View
View
View
View
| Type of Product | Board-To-Wire Connection Connector |
| Model No | PS-20PE-D4T1-PN1 |
| Rated Current (A) | 3 |
| Pack of | 1 Pcs |
Type of Product |
Board-To-Wire Connection Connector |
Model No |
PS-20PE-D4T1-PN1 |
Rated Current (A) |
3 |
Pack of |
1 Pcs |
Suitable For |
Socket receptacle: PS-20SD-D4TS1-1 |
Country of Origin |
Japan |
No. of Pole |
20 |
Name of Manufacturer/Packer/Importer |
Japan Aviation Electronics Industry, Ltd. |
Operating Temperature Range |
-55 to +85°C |
Monotaro ID |
8517424 |
Import Country |
Direct Import from Japan |
Trusco Part No. |
418-1085 |
Insulation_Resistance (MΩ) |
1000 |
Contact Resistance |
less than 10 mΩ |
Withstand Voltage |
AC1000Vr.ms (1 minute) |
Contact Spacing (mm) |
2.54 |
Connector Shape |
Board side: Straight / pin header open type |
Circuit Board Connection |
Soldering (through hole) |
Terminal Connection Type |
Wire side / crimp board side / solder (through hole) wrapping |

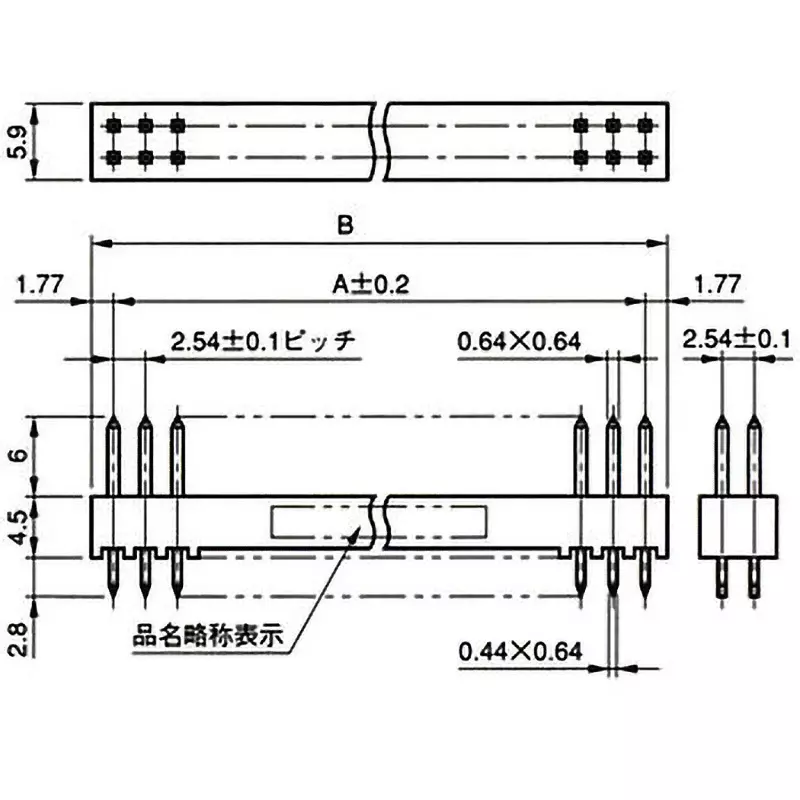

Dimensions B (mm) |
26.4 |
Suitable Wire |
AWG # 22 to # 36 equivalent stranded wire |
Dimensions A (mm) |
22.86 |
Suitable Circuit Board Thickness (mm) |
1.6 |
Insulator Material |
Glass-filled PBT (UL94V-0, black) |
Single or Double Strand |
2 rows |
Material Finish |
Copper alloy / (Contact part) Gold plating on nickel (0.1μm or more), (Others) Gold flash on nickel |
