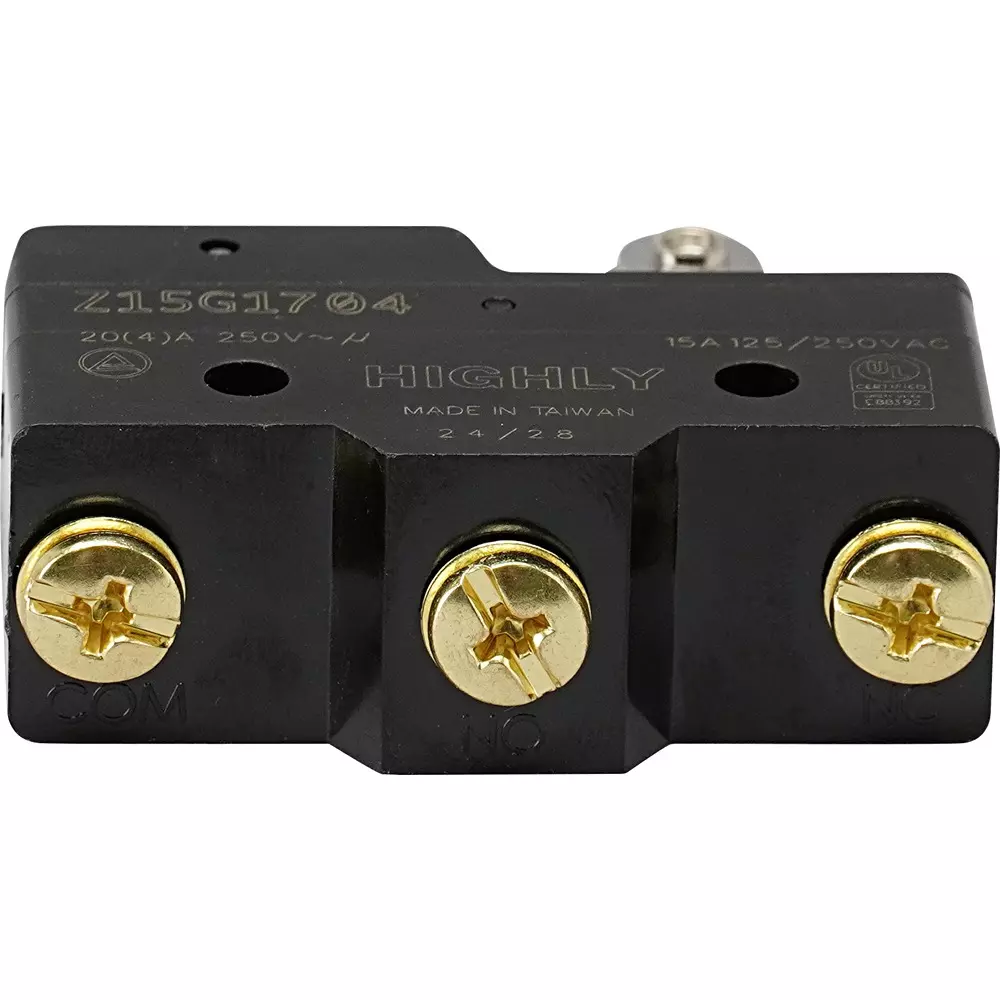

| Type of Product | Microswitch |
| Rated Voltage | DC250 |
| Country of Origin | TAIWAN |

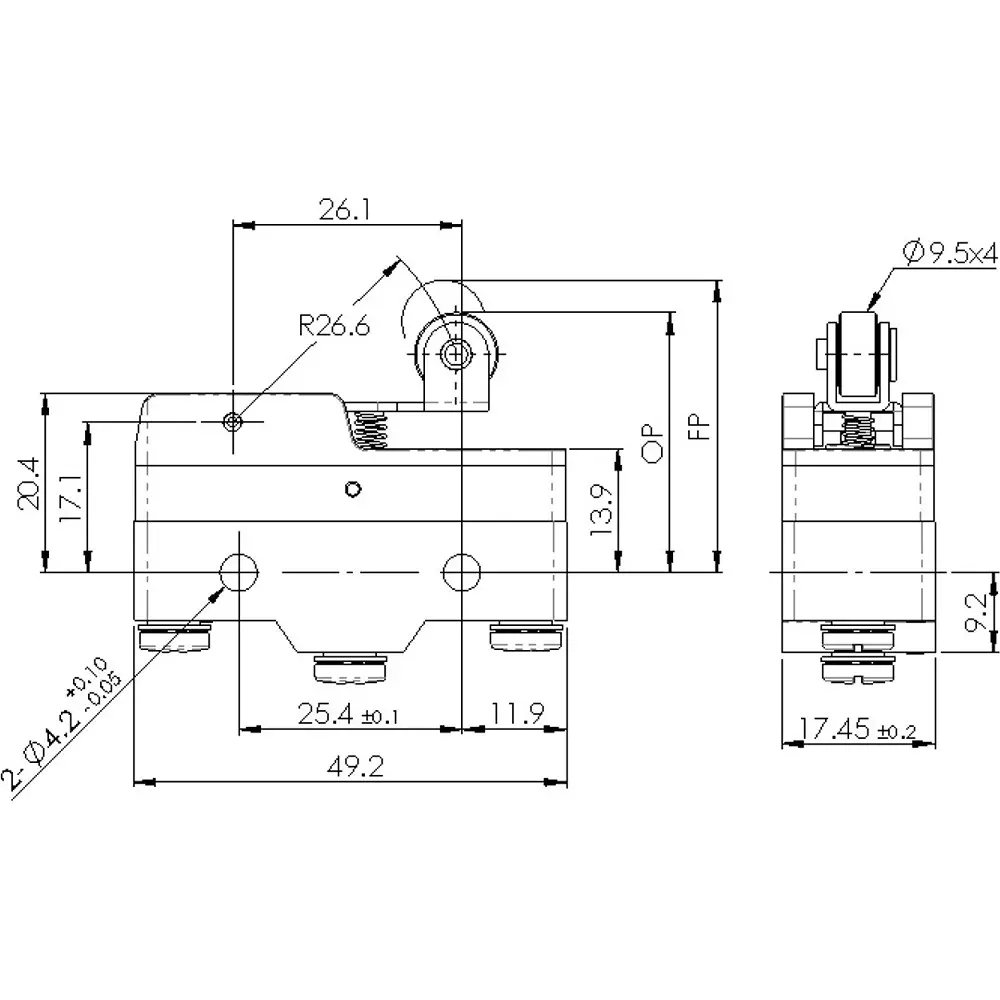

| Dimension (mm) | FP(MAX):32.5, OP:30.2±0.4 |
Type of Product |
Microswitch |
Rated Voltage |
DC250 |
Country of Origin |
TAIWAN |
Dimension (mm) |
FP(MAX):32.5, OP:30.2±0.4 |
Contact Material |
AgSnO2 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Operating Temperature Range |
0 to +55°C |
Monotaro ID |
12706586 |
Import Country |
Direct Import from Japan |
Insulation Resistance |
100MΩ or more DC500V insulation resistance tester |
Contact Resistance |
15 mΩ or less (initial value) |
Withstand Voltage |
(Between terminals of the same polarity) 500 VAC, (Between terminals and non-current-carrying metal parts) 1500 VAC |
Temperature Rise |
55℃ |
Contact Type |
Single pole double throw |
Mechanical Life |
1 million times |
Recommended tightening torque range (Nm) |
1.18 to 1.47 |
Actuator Type |
Hinge / roller / short lever type |
Operating Patterns |
OF (force required for operation) 160gf (≒1.57N) (maximum), RF (return force) 42gf (≒0.41N) (minimum), MD (hysteresis) 0.5mm (maximum), OT (after operation) movement) 2.4mm (minimum) |
Electrical ratings |
UL61058：AC125/250V-15A EN61058-1：AC250V-20(4)A DC125V-0.5A, DC250V-0.5A |
Electrical Life |
100,000 times |
Vibration Resistance |
10~55Hz double amplitude 1.5mm |
Terminal Type |
Screw terminal |
Applicable Standard |
UL61058-1 /CSA /EN61058-1 / CCC (GB/T 14048.5) |
Terminal Shape |
M4 screw terminal |
