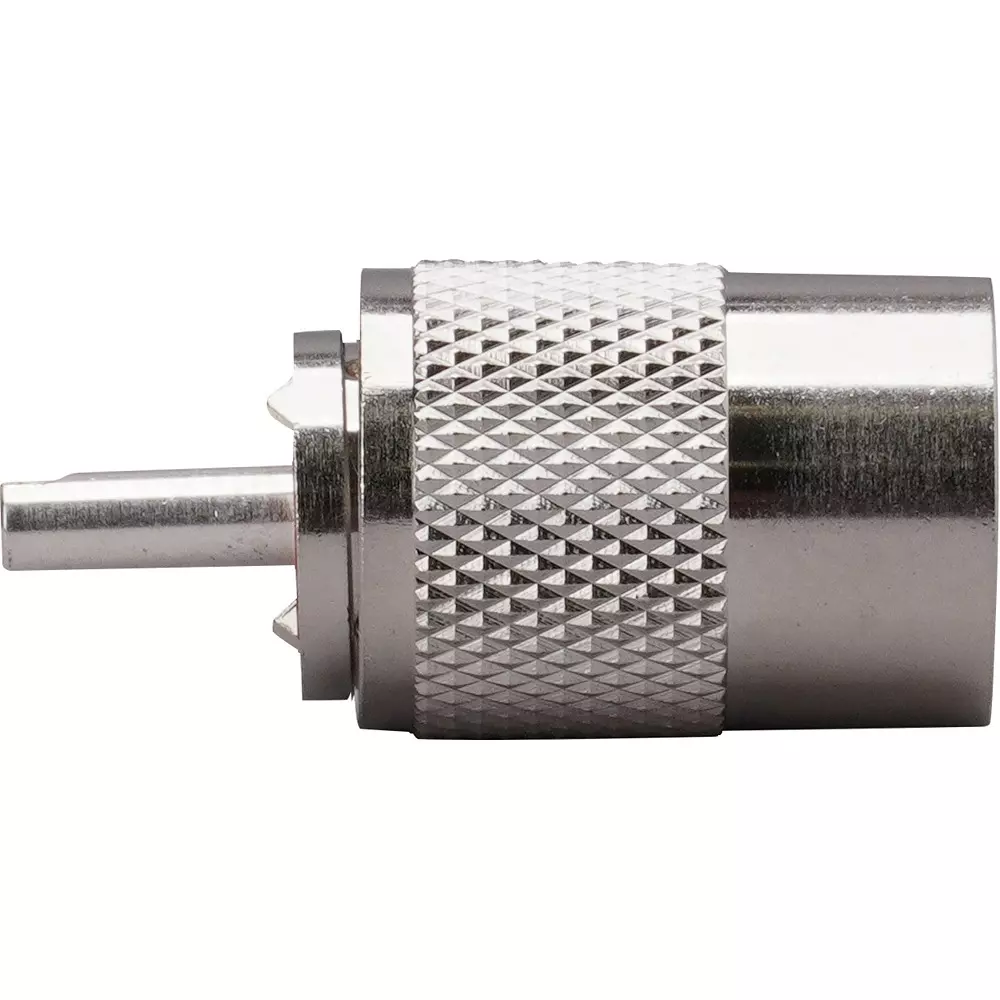

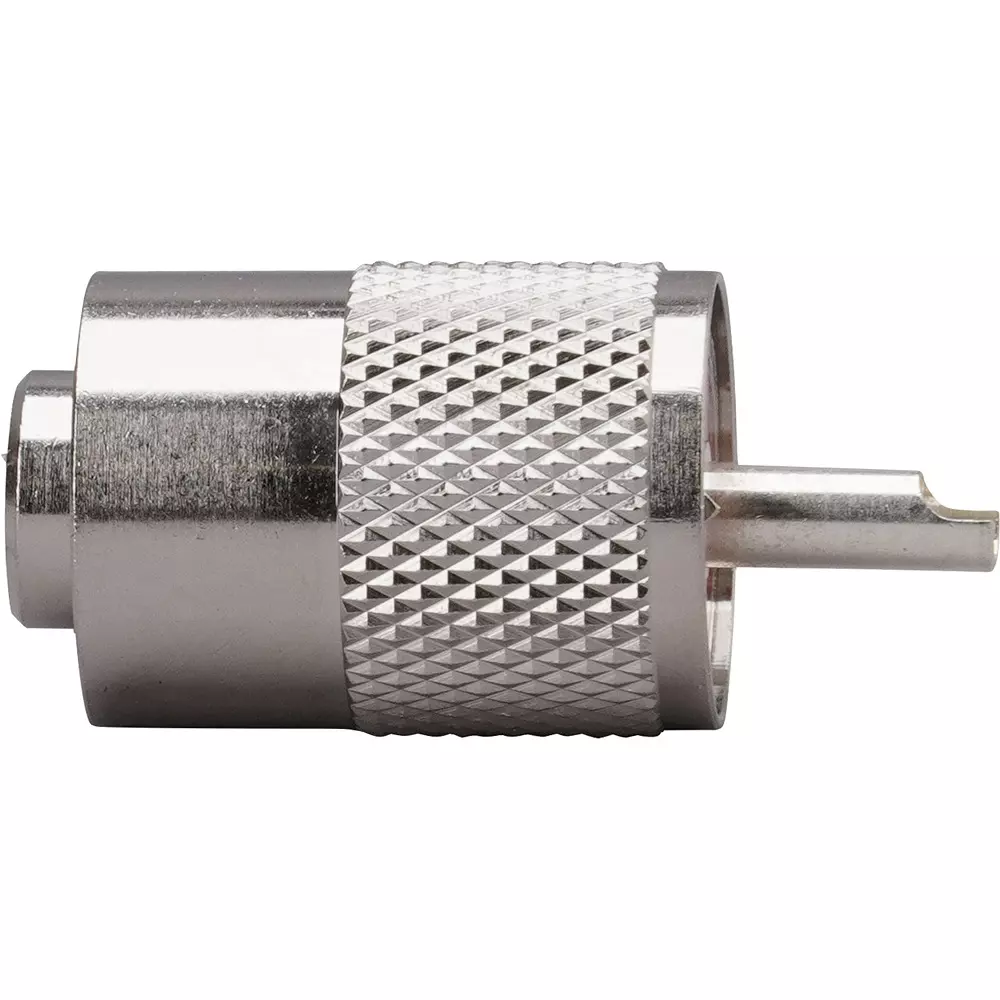

| Type of Product | Coaxial Connector Plug M Type |
| Material | Body: Brass/Nickel Plating, Core Wire: Brass/Silver Plating |
| Type | M-PS-5 |
| Rated Voltage | 500Vrms |
Type of Product |
Coaxial Connector Plug M Type |
Material |
Body: Brass/Nickel Plating, Core Wire: Brass/Silver Plating |
Type |
M-PS-5 |
Rated Voltage |
500Vrms |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Monotaro ID |
3912136 |
Import Country |
Direct Import from Japan |
Specifications |
Number of guaranteed engagements: 500 times |
Insulation_Resistance (MΩ) |
≧100 |
Tensile Strength (N) |
3 |
Suitable Cable |
5D-2V・5C-2V・5C-2VS・5D-SFA |
Frequency (Mhz) |
Rating: DC to 200 |
Contact Resistance |
3 mΩ Max |
Characteristic Impedance |
Mismatch |
Withstand Voltage |
1000Vrms |
