| Type of Product | Mini Relay 4 Pole |
| Model No | JZX-22F(D)/220AC-4Z6 |
| Type | Miniature relay |
| Suitable For | Mini relay terminal block (order code: 28614907) |
Type of Product |
Mini Relay 4 Pole |
Model No |
JZX-22F(D)/220AC-4Z6 |
Type |
Miniature relay |
Suitable For |
Mini relay terminal block (order code: 28614907) |
Country of Origin |
CHINA |
No. of Pole |
4 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Mass (g) |
32 |
Monotaro ID |
40143433 |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
100 |
Terminal Shape |
Plug-in terminal |
CR Circuit |
None |
Rated Carrying Current (A) |
3 |
Operation Ambient Temperature (°C) |
-30 to +55 (no freezing or condensation) |
Indicator Lamp |
Included |
Maximum Allowable Contact Current (A) |
3 |

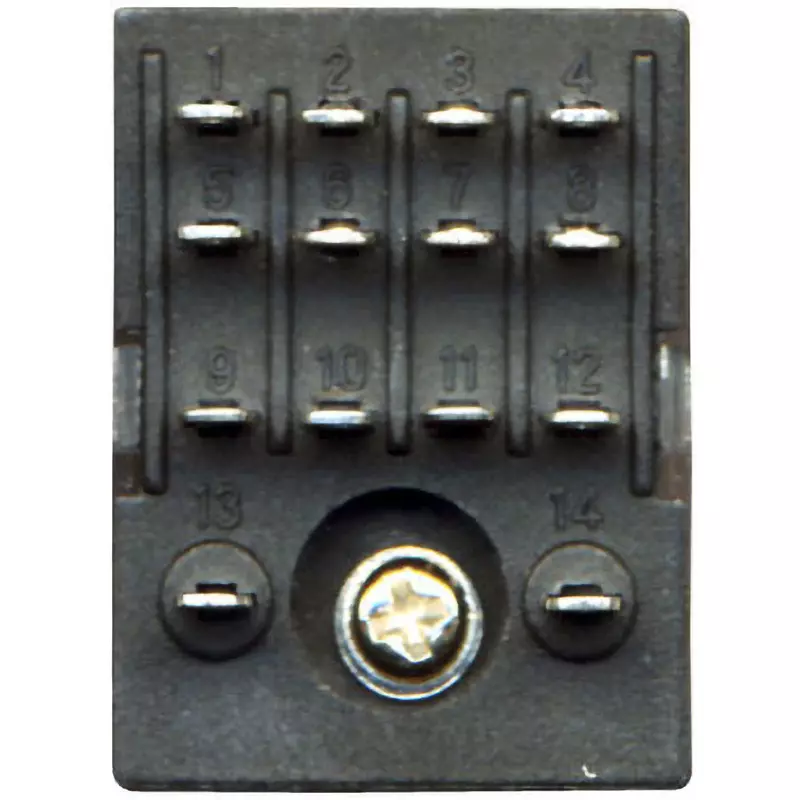

No. Of Pin |
14 |

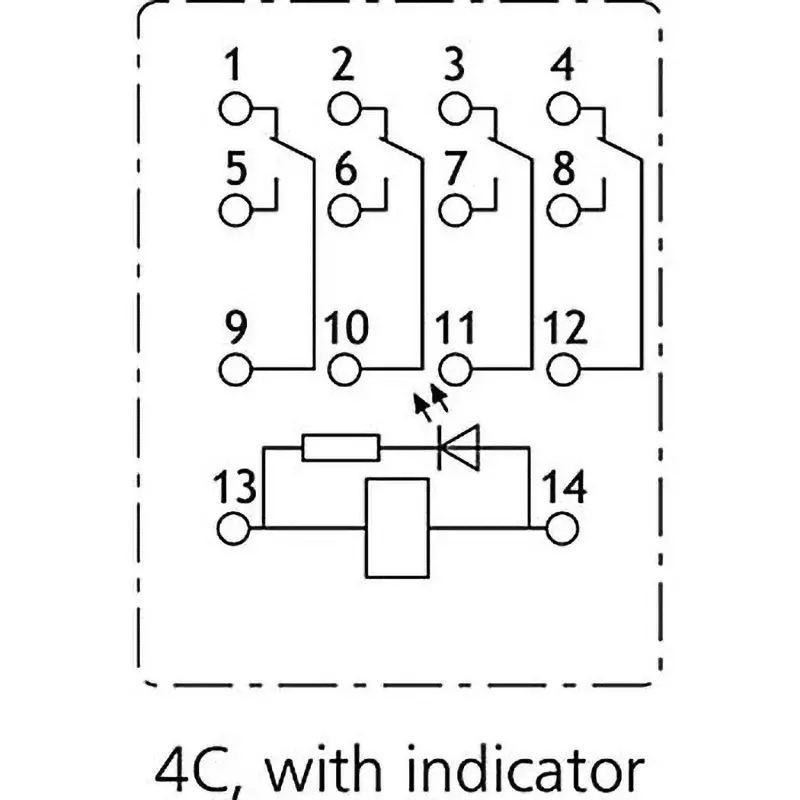

Contact Configuration |
4c |
Rated Voltage (V) |
AC220 |
Input Voltage Range (V) |
85% to + 110% of rated voltage |
