Ships within 25 days
View
View
View
View
| Type of Product | Screw-Less Terminal Block Ml-880 |
| Model No | ML-880-S2H-8P |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |
Screw-Less Terminal Block Ml-880 |
Model No |
ML-880-S2H-8P |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
8P |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
8611601 |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
Applicable Standard |
UL standard (compatible with field wiring), CSA standard |
Rated Voltage (V) |
300/150 |
Terminal Connection Type |
Screwless |

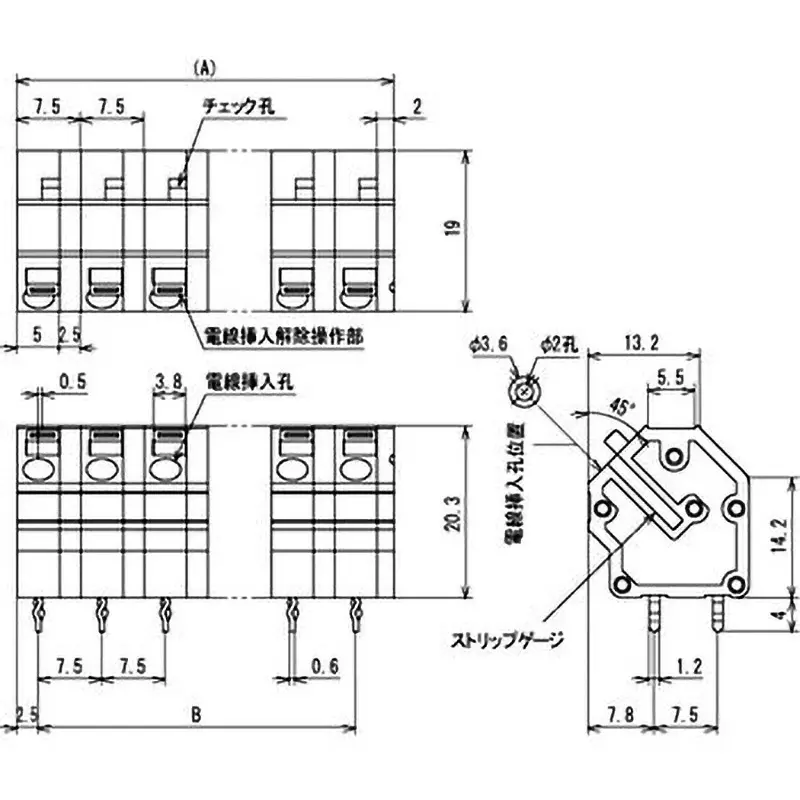

Dimensions B (mm) |
52.5 |
Dimensions A (mm) |
59.5 |
Standard Cable Stripping Length (mm) |
11 |
Current Rating, UL (A) |
10/15 V |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.6mm (AWG26 ~ AWG24 ), twisted <sup><sup>wire: 0.3mm 2 ~ 1.25mm 2 (AWG22</sup></sup> ~ AWG16), wire diameter Φ0.18mm more |
Terminal Spacing |
7.5 mm |
Type of Sign |
Printed board |
Insulator Material |
Body: Nylon 66 (UL94V-0) <br> Button: PPE (UL94V-0) |
suitable crimping terminal |
PC terminal |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ3mm, cutting edge width 2.6mm) |
Rating of Suitable Cable |
1300V · 10A at the rated: single line: Φ1.2mm (AWG16), twisted wire: 1.25mm <sup>2</sup> (AWG16), wire diameter Φ0.18mm more than 2150V · 15A at the rated: single line: Φ1.6mm (AWG14) |
Color of Operating Part |
W (white) |
Body Color |
GY (gray) |
Withstand voltage (V / min) |
AC2000 |
End Plate |
GY (gray) |
