| Type of Product | Screwless Terminal Block |
| Model No | ML-1600-20P |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |
Screwless Terminal Block |
Model No |
ML-1600-20P |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
20P |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
8615862 |
Import Country |
Direct Import from Japan |
Applicable Standard |
UL standard, CSA standard, TUV standard (conforms to IEC60947-7-1) |
Rated Voltage (V) |
300 |
Terminal Connection Type |
Screwless |

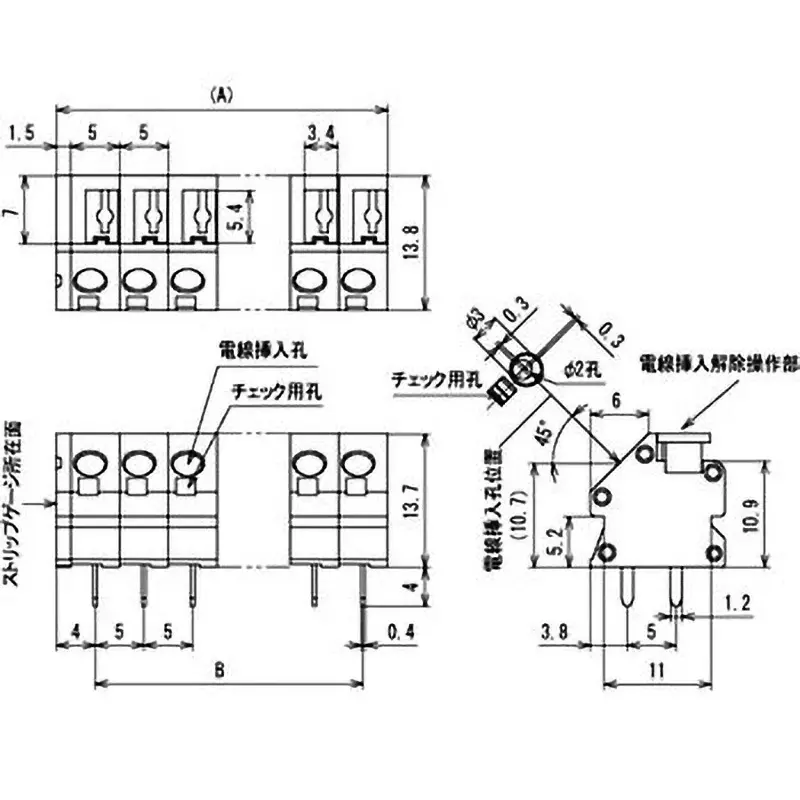

Dimensions B (mm) |
95 |
Dimensions A (mm) |
101.5 |
Current Rating, IEC (A) |
7 |
Standard Cable Stripping Length (mm) |
9 |
Current Rating, UL (A) |
7 |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG18 ), stranded 0.2mm <sup><sup>2</sup></sup> ~ 0.75mm <sup>2,</sup> wire diameter Φ0.18mm more |
Terminal Spacing |
5 mm |
Type of Sign |
Printed board |
Insulator Material |
Body: Nylon 66 (UL94V-0), Button: PPE (UL94V-0) |
suitable crimping terminal |
PC terminal |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ5mm, cutting edge width 4.5mm) |
Rating of Suitable Cable |
Single line: Φ1.0mm (AWG18), stranded wire 0.75mm <sup>2</sup> (AWG20), wire diameter Φ0.18mm more |
Color of Operating Part |
GY (gray) |
Body Color |
GY (gray) |
Withstand voltage (V / min) |
AC2000 |
End Plate |
GY (gray) |
