| Type of Product | Screwless Terminal Block 2-Stage Type |
| Model No | ML-1800-S1-16P |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |

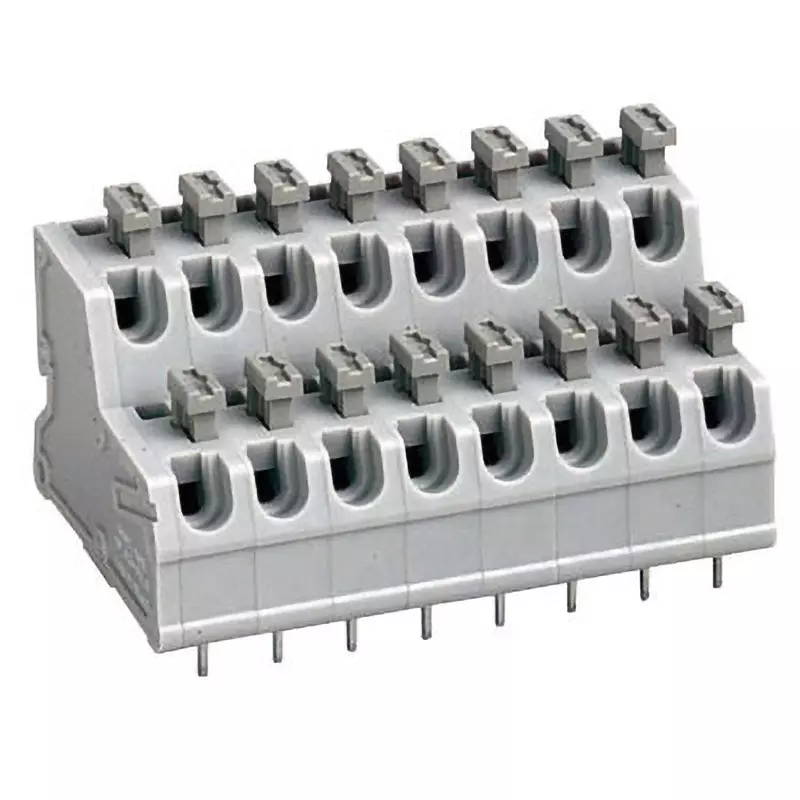

Screwless Terminal Block 2-Stage Type |
Model No |
ML-1800-S1-16P |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
16P |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
8616474 |
Import Country |
Direct Import from Japan |
Specifications |
A fixed clamp such as a multi-pole test probe (manufactured on the user side) is provided on the back of the main unit. |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
Applicable Standard |
UL standard (compatible with field wiring), CSA standard, TUV standard (conforms to IEC60947-7-1) |
Rated Voltage (V) |
300 |
Terminal Connection Type |
Screwless |

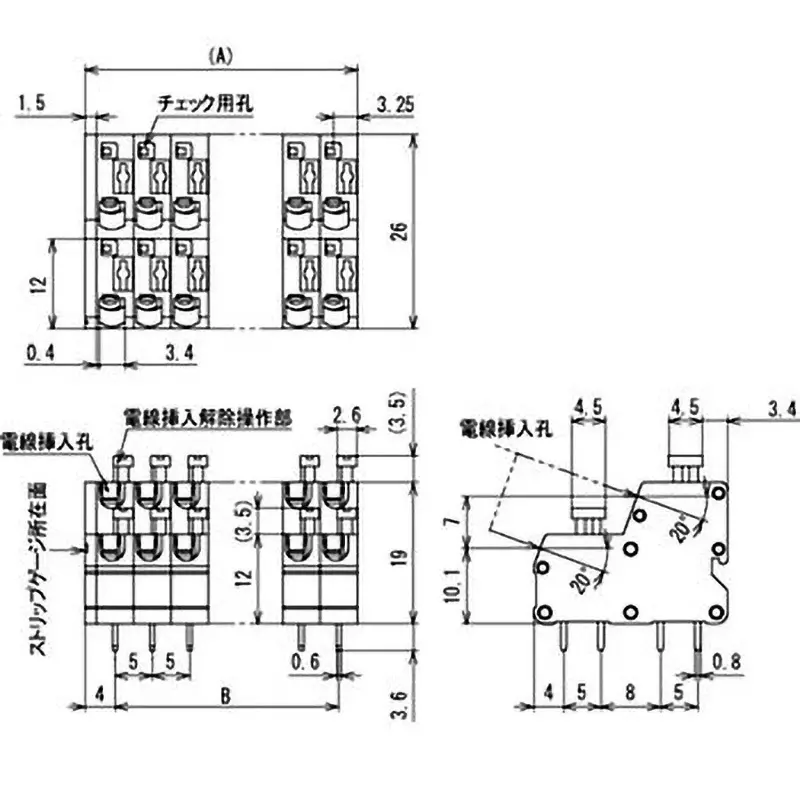

Dimensions B (mm) |
35 |
Dimensions A (mm) |
41.5 |
Standard Cable Stripping Length (mm) |
9 to 10 |
Suitable Cable Range |
Single wire: Φ0.65mm to Φ1.6mm (AWG22 to AWG14) |
Terminal Spacing |
5 mm |
Type of Sign |
Printed board |
Insulator Material |
Body: Nylon 66 (UL94V-0) <br> Button: PPE (UL94V-0) |
suitable crimping terminal |
PC terminal |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ5mm, cutting edge width 4.5mm) |
Rating of Suitable Cable |
Single wire: Φ1.2mm (AWG16) |
Color of Operating Part |
GY (gray) |
Body Color |
GY (gray) |
Withstand voltage (V / min) |
AC2000 |
Mechanism |
Check hole available |
