| Type of Product | PCB Terminal Block ML-250 |
| Model No | ML-250-S1BYF-8P |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |
PCB Terminal Block ML-250 |
Model No |
ML-250-S1BYF-8P |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
8 Pole |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
39185833 |
Import Country |
Direct Import from Japan |
Specifications |
The terminal number is displayed on the main unit. |
RoHS Directive |
Correspondence |
Insulation_Resistance (MΩ) |
1000 mΩ or More (DC500V) |
Applicable Standard |
UL standard (compatible with field wiring), CSA standard, TUV standard (conforms to IEC60947-7-1) |
Rated Voltage (V) |
250 |
Terminal Connection Type |
screw |

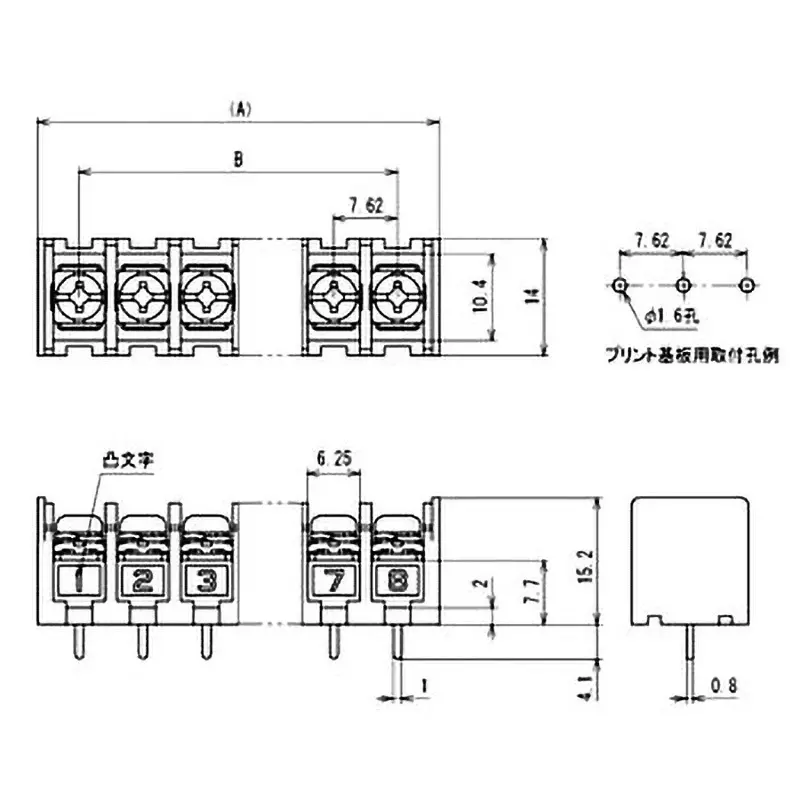

Dimensions B (mm) |
53.34 |
Dimensions A (mm) |
63.33 |
Current Rating, IEC (A) |
10 |
Current Rating, UL (A) |
10 |
Terminal Spacing |
7.62 mm |
Type of Sign |
Printed board |
Insulator Material |
P.B.T.(UL94V-0) |
suitable crimping terminal |
PC terminal |
Body Color |
B (black) |
Withstand voltage (V / min) |
AC2000 |
Terminal Screw |
M3x7.2 |
