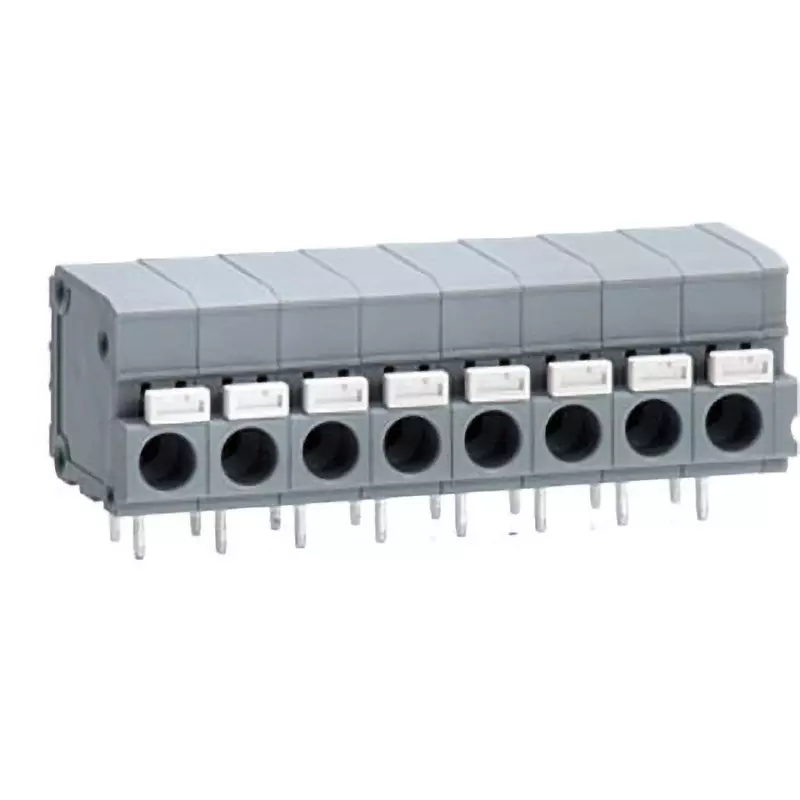

| Type of Product | Screwless PCB Terminal Block ML-800 |
| Model No | ML-800-S1H-10P |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |
Screwless PCB Terminal Block ML-800 |
Model No |
ML-800-S1H-10P |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
10 Pole |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
8607295 |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
100 mΩ or More (DC500V) |
Applicable Standard |
UL standard (compatible with field wiring), CSA standard, TUV standard (conforms to IEC60947-7-1) |
Rated Voltage (V) |
250 |
Terminal Connection Type |
Screwless |

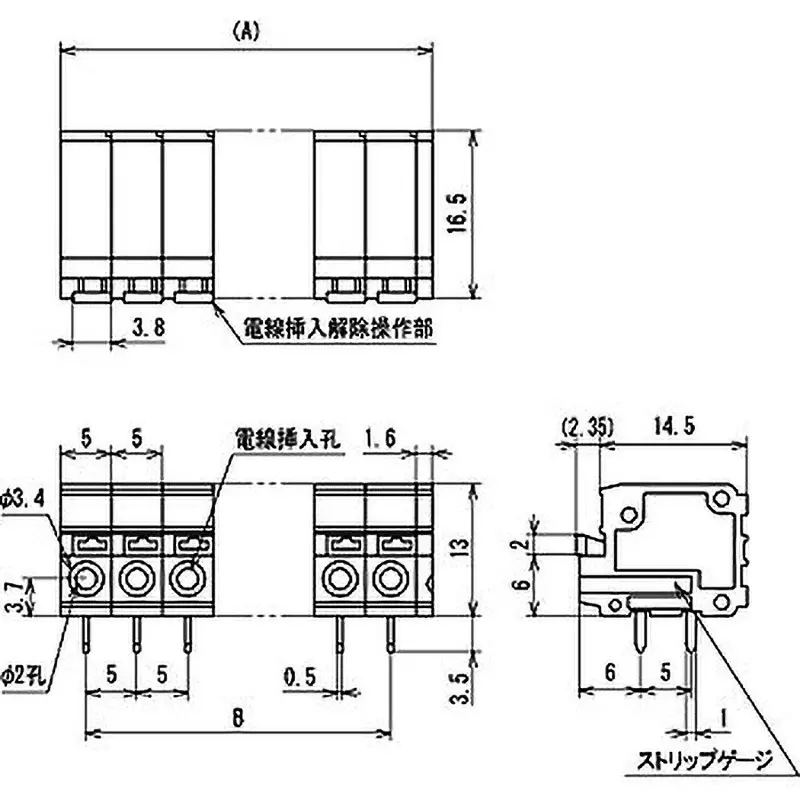

Dimensions B (mm) |
45 |
Dimensions A (mm) |
51.6 |
Current Rating, IEC (A) |
10 |
Standard Cable Stripping Length (mm) |
11 |
Current Rating, UL (A) |
10 |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG16 ), twisted wire: 0.2mm 2 ~ 1.25mm 2 (AWG24 ~ AWG16), wire diameter Φ0.18mm more |
Terminal Spacing |
5 mm |
Type of Sign |
Printed board |
Insulator Material |
Body: Nylon 66 (UL94V-0), Button: PPE (UL94V-0) |
suitable crimping terminal |
PC terminal |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ3mm, cutting edge width 2.6mm) |
Rating of Suitable Cable |
Single line: Φ1.2mm (AWG16), twisted wire: 1.25mm² (AWG16), wire diameter Φ0.18mm more |
Body Color |
GY (gray) |
Withstand voltage (V / min) |
AC2000 |
End Plate |
GY (gray) |
