| Type of Product | Screwless Terminal Block |
| Model No | ML-2200-S1-17P |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |
Screwless Terminal Block |
Model No |
ML-2200-S1-17P |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
17P |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
8617795 |
Import Country |
Direct Import from Japan |
Applicable Standard |
UL standard (compatible with field wiring), CSA standard, TUV standard (conforms to IEC60947-7-1) |
Rated Voltage (V) |
300 |
Terminal Connection Type |
Screwless |

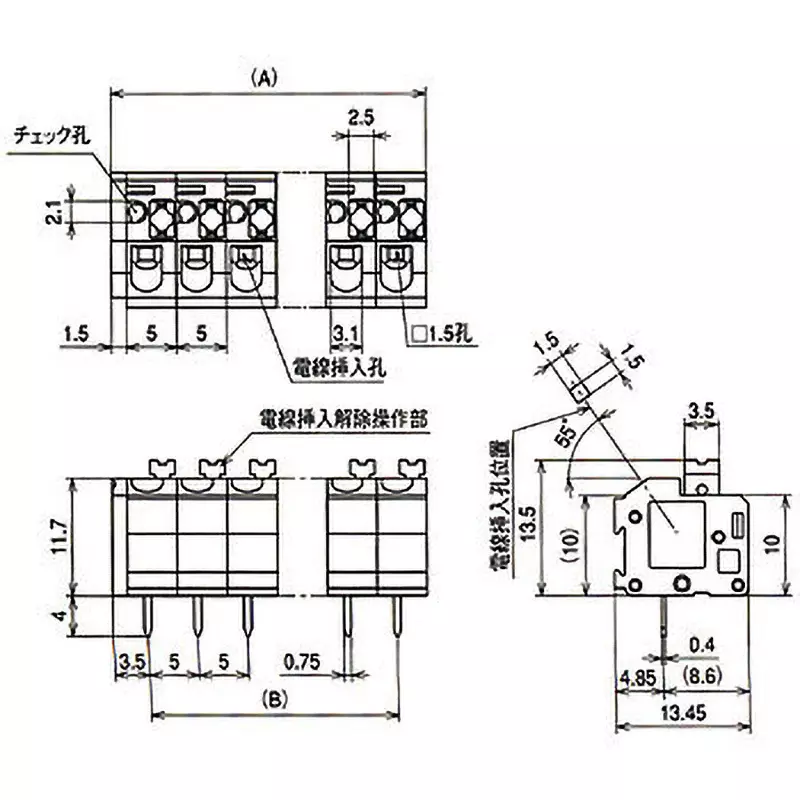

Dimensions B (mm) |
80 |
Dimensions A (mm) |
86.5 |
Current Rating, IEC (A) |
3 |
Standard Cable Stripping Length (mm) |
8 |
Current Rating, UL (A) |
3 |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG16 (~ 18: TUV), twisted <sup><sup>wire: 0.3mm 2 ~ 0.75mm 2 (AWG22</sup></sup> ~ AWG20), wire diameter Φ0.18mm more |
Terminal Spacing |
5 mm |
Type of Sign |
Printed board |
Insulator Material |
Body: Nylon 66 (UL94V-0), Button: PPE (UL94V-0) |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ5mm, cutting edge width 4.5mm or less), Phillips screwdriver ((shaft diameter Φ6mm or less) |
Rating of Suitable Cable |
Single line: Φ0.65mm (AWG22), stranded wire 0.3mm <sup>2</sup> (AWG22), wire diameter Φ0.18mm more |
Body Color |
GY (gray) |
Withstand voltage (V / min) |
AC2000 |
End Plate |
GY (gray) |
