| Type of Product | Screwless Terminal Block |
| Model No | ML-4500-AWJH-2PB |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |
Screwless Terminal Block |
Model No |
ML-4500-AWJH-2PB |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
2P |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
8620087 |
Import Country |
Direct Import from Japan |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
Contact Resistance |
20 mΩ or less (initial value) |
Applicable Standard |
UL standard, C-UL standard, TUV standard (IEC61984) |
Rated Voltage (V) |
300 |

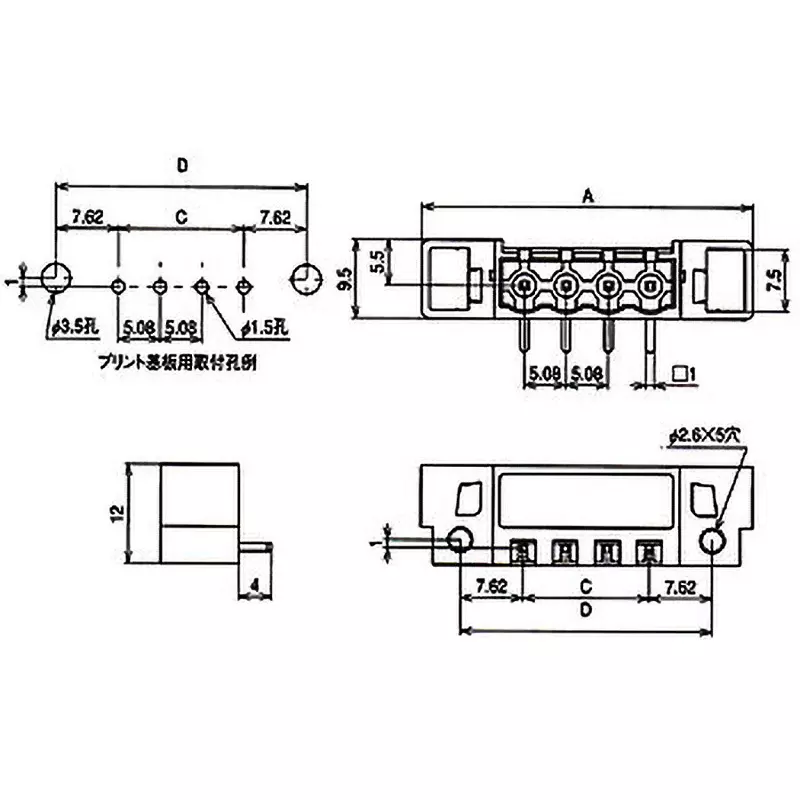

Dimensions C (mm) |
5.08 |
Terminal Connection Type |
Screwless |
Dimensions D (mm) |
20.32 |
Dimensions A (mm) |
30.02 |
Standard Cable Stripping Length (mm) |
10 |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.6mm (AWG26 ~ AWG14 ), twisted <sup><sup>wire: 0.2mm 2 ~ 2.0mm 2 (AWG24</sup></sup> ~ AWG14), wire diameter Φ0.18mm more |
Terminal Spacing |
5.08 mm |
Type of Sign |
Printed board |
Insulator Material |
Body: Nylon 66 (UL94V-0) <br> Button: Nylon 66 (UL94V-0) |
Recommended Tool |
Slotted screwdriver * Anything that can push the button in is acceptable. |
Rating of Suitable Cable |
Single line: Φ1.2mm (AWG16), twisted wire: 1.25mm <sup>2</sup> (AWG16) |
Body Color |
B (black) |
Withstand voltage (V / min) |
AC2000 |
