| Type of Product | Screwless Terminal Block 2-Stage Type |
| Model No | ML-3300-36P |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |
Screwless Terminal Block 2-Stage Type |
Model No |
ML-3300-36P |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
36P |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
8618181 |
Import Country |
Direct Import from Japan |
Specifications |
A fixed clamp such as a multi-pole test probe (manufactured on the user side) is provided on the back of the main unit. |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
Applicable Standard |
UL standard (compatible with field wiring), C-UL standard, TUV standard (IEC60947-7-1) |
Rated Voltage (V) |
300 |
Terminal Connection Type |
Screwless |

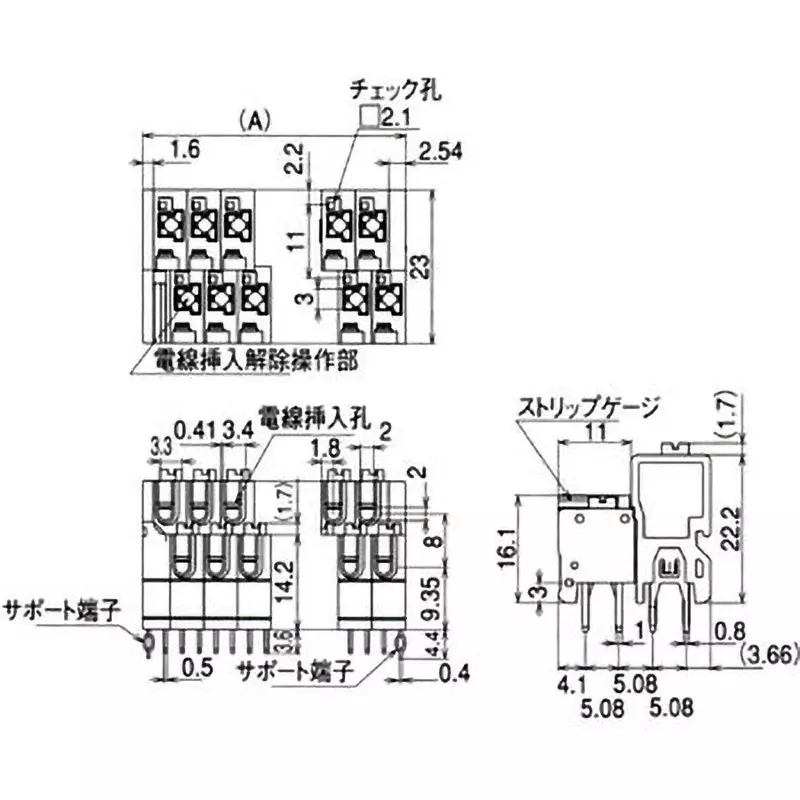

Dimensions B (mm) |
91.44 |
Dimensions A (mm) |
95.58 |
Standard Cable Stripping Length (mm) |
8 to 9 |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG16 ), twisted <sup><sup>wire: 0.2mm 2 ~ 1.25mm 2 (AWG24</sup></sup> ~ AWG16), wire diameter Φ0.18mm more |
Terminal Spacing |
5.08 mm |
Type of Sign |
Printed board |
Insulator Material |
Body: Nylon 66 (UL94V-0), <br> Button: PPE (UL94V-0) |
suitable crimping terminal |
PC terminal |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ3mm, cutting edge width 2.6mm), Phillips screwdriver (shaft diameter Φ6mm) * Anything that can push the button is acceptable. (You can also press the button with your finger) |
Rating of Suitable Cable |
Single line: Φ1.2mm (AWG16), twisted wire: 1.25mm <sup>2</sup> (AWG16), wire diameter Φ0.18mm more |
Body Color |
GY (gray) |
Withstand voltage (V / min) |
AC2000 |
End Plate |
GY (gray) |
Mechanism |
Check hole available |
