| Type of Product | Screwless Terminal Block |
| Model No | ML-2300-H-18P |
| Pack of | 1 Pcs |
| Country of Origin | Japan |
Type of Product |
Screwless Terminal Block |
Model No |
ML-2300-H-18P |
Pack of |
1 Pcs |
Country of Origin |
Japan |
No. of Pole |
18P |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Monotaro ID |
75782271 |
Import Country |
Direct Import from Japan |
Specifications |
ML-2300 high button type. |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
Applicable Standard |
UL standard (compatible with field wiring), C-UL standard, TUV standard (conforms to IEC60947-7-1) |
Rated Voltage (V) |
300 |
Terminal Connection Type |
Screwless |

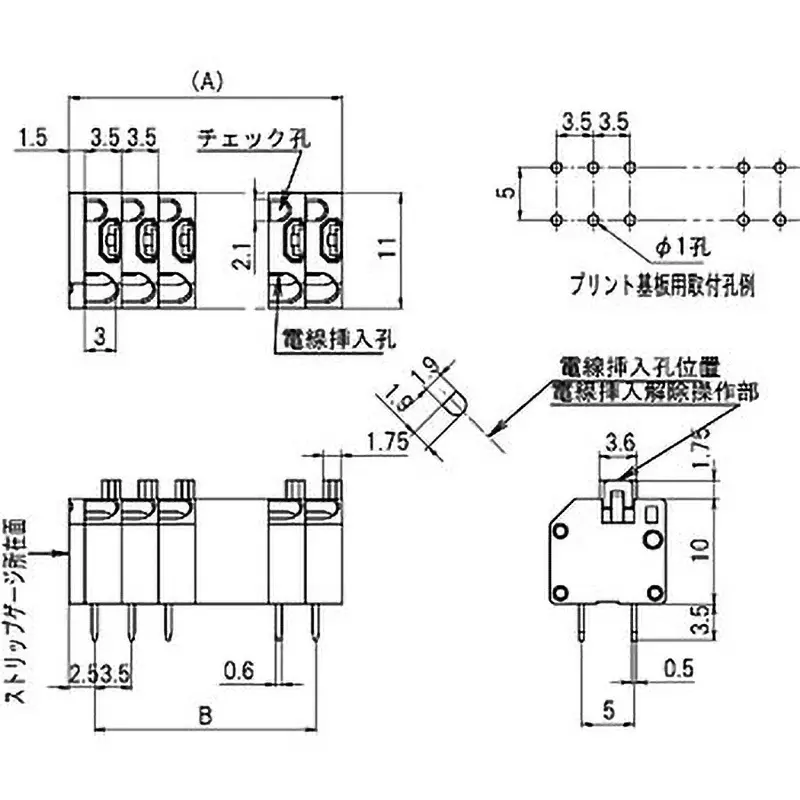

Dimensions B (mm) |
59.5 |
Dimensions A (mm) |
64.5 |
Current Rating, IEC (A) |
5 |
Standard Cable Stripping Length (mm) |
8 |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG16 ), <sup><sup>燃線: 0.2mm 2 ~ 0.75mm 2 (AWG24</sup></sup> ~ AWG20), wire diameter Φ0.18mm more |
Terminal Spacing |
3.5 mm |
Type of Sign |
Printed board |
Insulator Material |
Body: Nylon 66 (UL94V-0), Button: PPE (UL94V-0) |
suitable crimping terminal |
PC terminal |
Recommended Tool |
Slotted screwdriver (shaft diameter Φ3mm, cutting edge width 2.6mm) |
Rating of Suitable Cable |
Single line: Φ0.8mm (AWG20),燃線: 0.5mm <sup>2</sup> (AWG20), wire diameter Φ0.18mm more |
Body Color |
GY (gray) |
Withstand voltage (V / min) |
AC2000 |
Mechanism |
Check hole available |
