| Stroke (mm) | 40 |
| Monotaro ID | 2026027 |
| Type of Product | AC Solenoid Dual-Purpose Type |

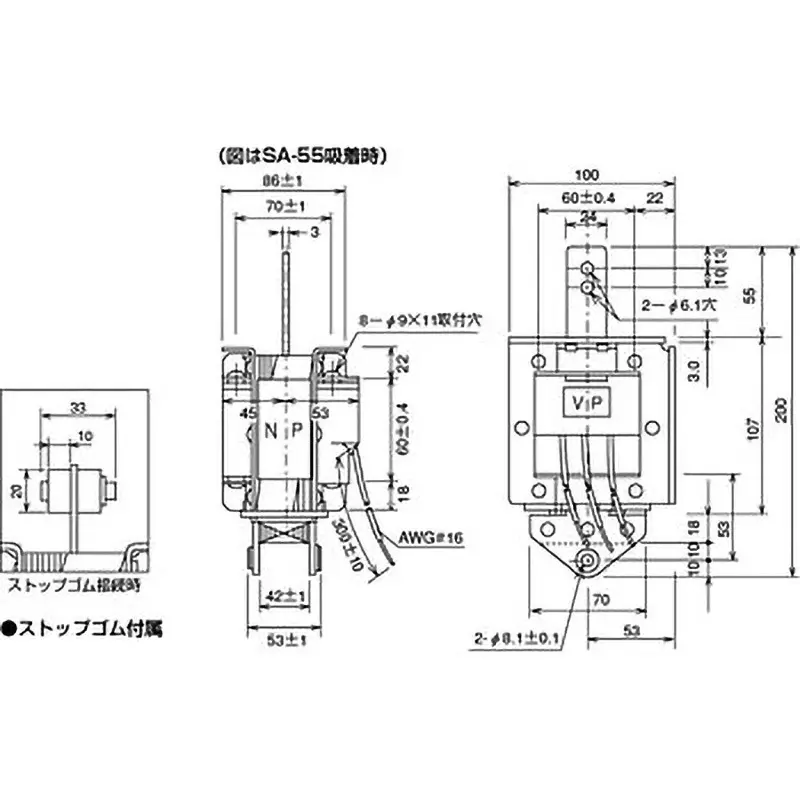

| Model No | SA-55 200V |
Stroke (mm) |
40 |
Monotaro ID |
2026027 |
Type of Product |
AC Solenoid Dual-Purpose Type |
Model No |
SA-55 200V |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Kokusai Dengyo Co., Ltd. |
Material |
Movable core: Cold-rolled silicon steel plate |
Mass (g) |
4400, 1280 (moving iron core) |
Rated Voltage (V) |
AC 200 V |
Withstand voltage (V / min) |
AC 1500 |
Insulation Type |
Class B insulation equivalent |
Starting Current (A) |
35 |
Insulation Resistance (MOhm) |
50 or more (DC500V) |
Rated Frequency (Hz) |
50 or 60 (3 leads) |
Suction Power |
98 N[10 Kgf] |
Acting Type |
tensile type |
Specifications |
Continuous rated current |
RoHS Directive |
Correspondence |
Holding Current (A) |
2 |
Endurance Times |
200,000 times |
Surface Treatment |
Black baking |
Coil |
Coil insulation: resin casting, coil: polyester copper wire |
Stop |
Rubber: NBR (black) |
Lead Wire |
Heat-resistant vinyl electric wire (UL-1015), red |
Temperature Rise |
85℃ or less |
