| Stroke (mm) | 6 |
| Monotaro ID | 40638904 |
| Type of Product | Pull Solenoid |
| Model No | CA10290820 |
Stroke (mm) |
6 |
Monotaro ID |
40638904 |
Type of Product |
Pull Solenoid |
Model No |
CA10290820 |
Import Country |
Direct Import from Japan |
Plunger Diameter |
10 mm |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takaha Kiko |
Mass (g) |
100 |
Resistance (Ω) |
82 |

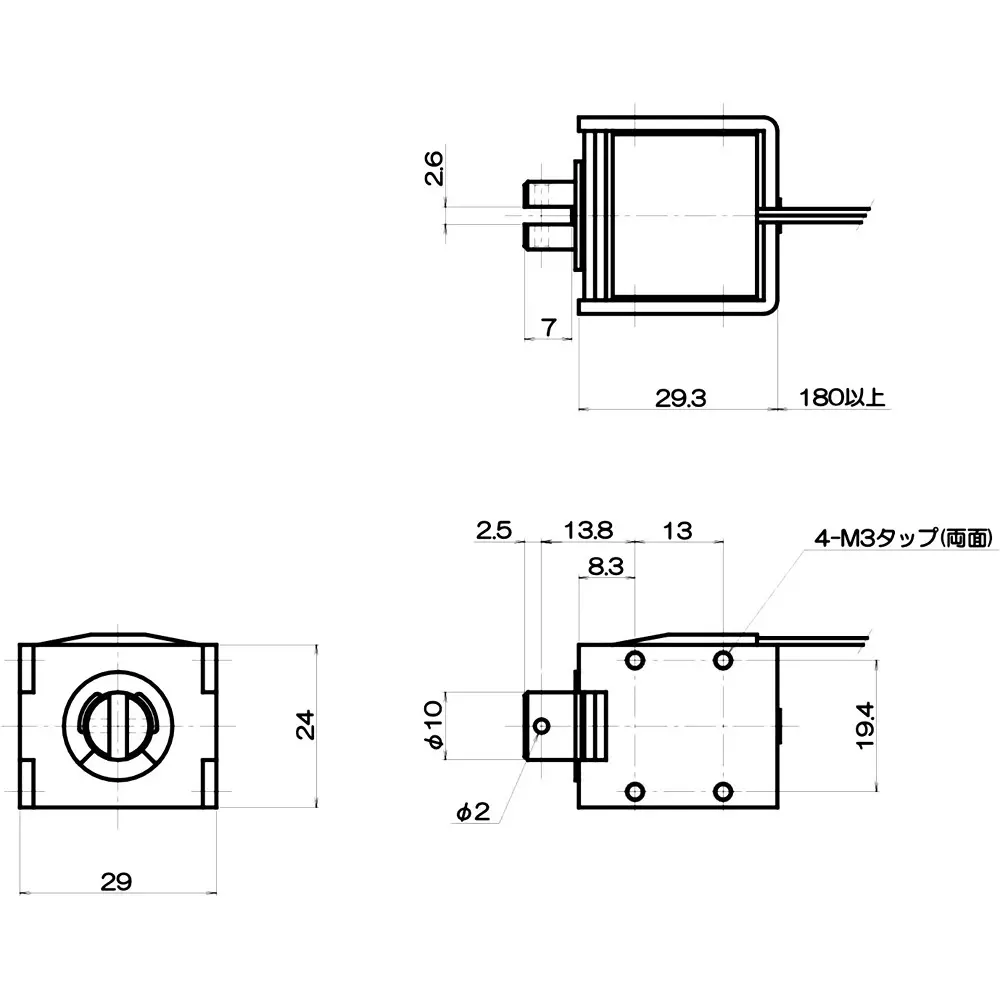

Dimension (mm) |
24x29x29.3 mm |
Maximum Stroke Length |
7 mm |
Type |
pull |
Overall Length (mm) |
29.3 (Frame) |
Attracting Force (N) |
Continuous current: 1.03 / Current rate 6%: 13.8 |
Rated Voltage (V) |
DC 24 |
Energization Rate |
DC 24：50% |
