Ships within 25 days
View
View
View
View
| Stroke (mm) | 6 |
| Monotaro ID | 40637836 |
| Type of Product | Pull Solenoid |
| Model No | CA12400320 |
Stroke (mm) |
6 |
Monotaro ID |
40637836 |
Type of Product |
Pull Solenoid |
Model No |
CA12400320 |
Import Country |
Direct Import from Japan |
Plunger Diameter |
12 mm |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takaha Kiko |
Mass (g) |
140 |
Resistance (Ω) |
32 |

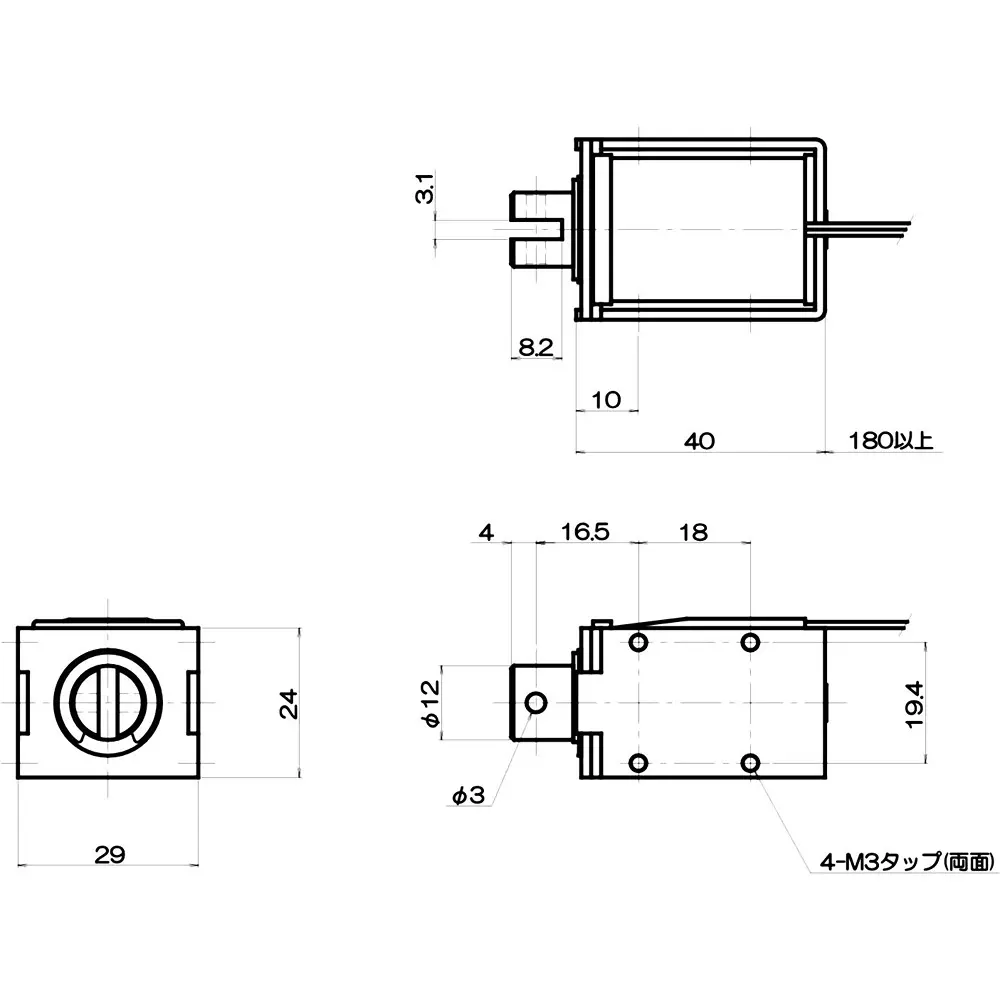

Dimension (mm) |
24x29x40 mm |
Maximum Stroke Length |
10 mm |
Type |
pull |
Overall Length (mm) |
40.0 (frame) |
Attracting Force (N) |
Continuous current: 2.1 / Current rate 6%: 20.2 |
Rated Voltage (V) |
DC 12 V, DC 24 |
Energization Rate |
DC 12: Continuous current, DC 24: 25% |
