| Stroke (mm) | 10 |
| Monotaro ID | 40637967 |
| Type of Product | Pull Solenoid |
| Model No | CA12570060 |
Stroke (mm) |
10 |
Monotaro ID |
40637967 |
Type of Product |
Pull Solenoid |
Model No |
CA12570060 |
Import Country |
Direct Import from Japan |
Plunger Diameter |
12 mm |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takaha Kiko |
Mass (g) |
260 |
Resistance (Ω) |
6 |

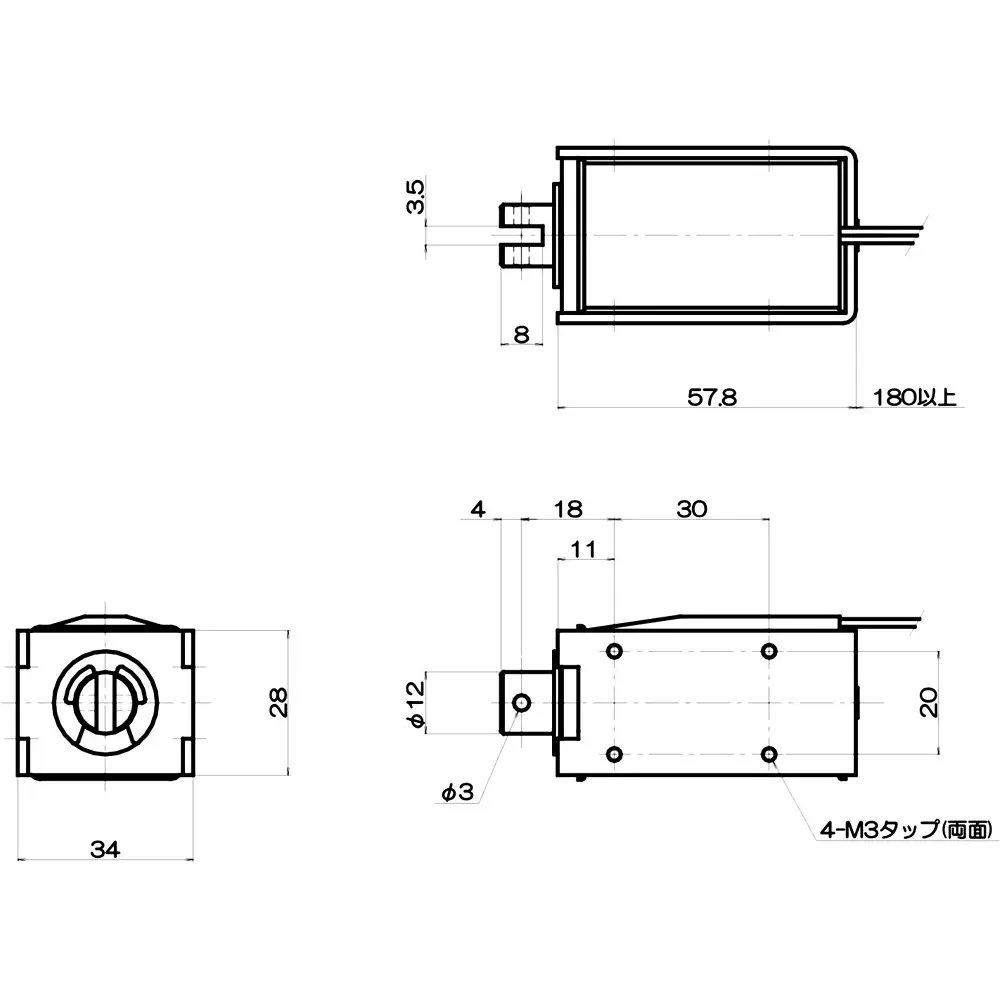

Dimension (mm) |
28x34x57.8 mm |
Maximum Stroke Length |
14 mm |
Type |
pull |
Overall Length (mm) |
57.8 (frame) |
Attracting Force (N) |
Continuous current: 4 / Current rate 6%: 23 |
Rated Voltage (V) |
DC6, DC12, DC24 |
Energization Rate |
DC 6: Continuous current, DC 12: 25%, DC 24: 6% |
