| Stroke (mm) | 4 |
| Monotaro ID | 40639446 |
| Type of Product | Self-Holding Solenoid |
| Model No | CD10370960 |
Stroke (mm) |
4 |
Monotaro ID |
40639446 |
Type of Product |
Self-Holding Solenoid |
Model No |
CD10370960 |
Import Country |
Direct Import from Japan |
Plunger Diameter |
10 mm |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takaha Kiko |
Mass (g) |
115 |
Resistance (Ω) |
96 |

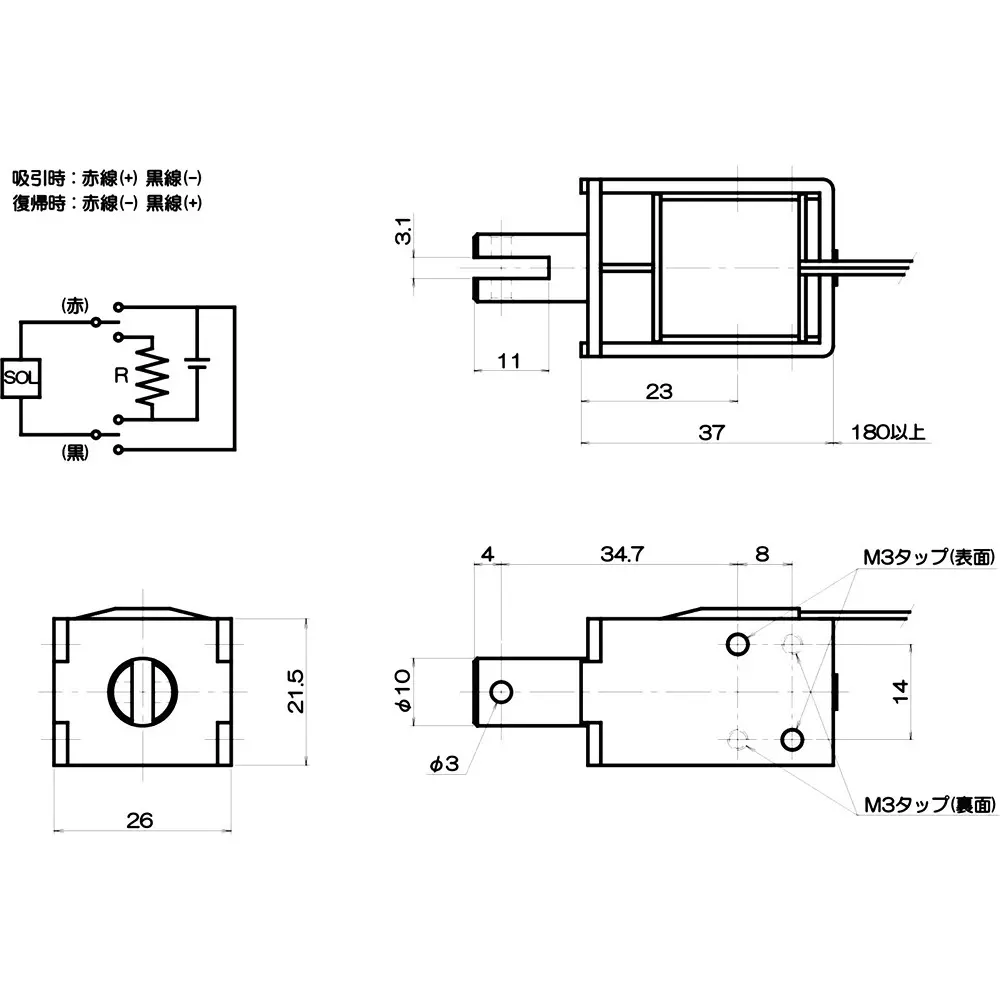

Dimension (mm) |
21.5x26x37 mm |
Maximum Stroke Length |
7 mm |
Overall Length (mm) |
37.0 (frame) |
Attracting Force (N) |
16 |
Rated Voltage (V) |
DC6, DC12, DC24 |
Energization Rate |
DC6: Continuous current D, DC12: Continuous current B, DC24: 50% |
