| Stroke (mm) | 4 |
| Monotaro ID | 40638624 |
| Type of Product | Pull Solenoid |
| Model No | CA07300160 |
Stroke (mm) |
4 |
Monotaro ID |
40638624 |
Type of Product |
Pull Solenoid |
Model No |
CA07300160 |
Import Country |
Direct Import from Japan |
Plunger Diameter |
7 mm |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takaha Kiko |
Mass (g) |
45 |
Resistance (Ω) |
16 |

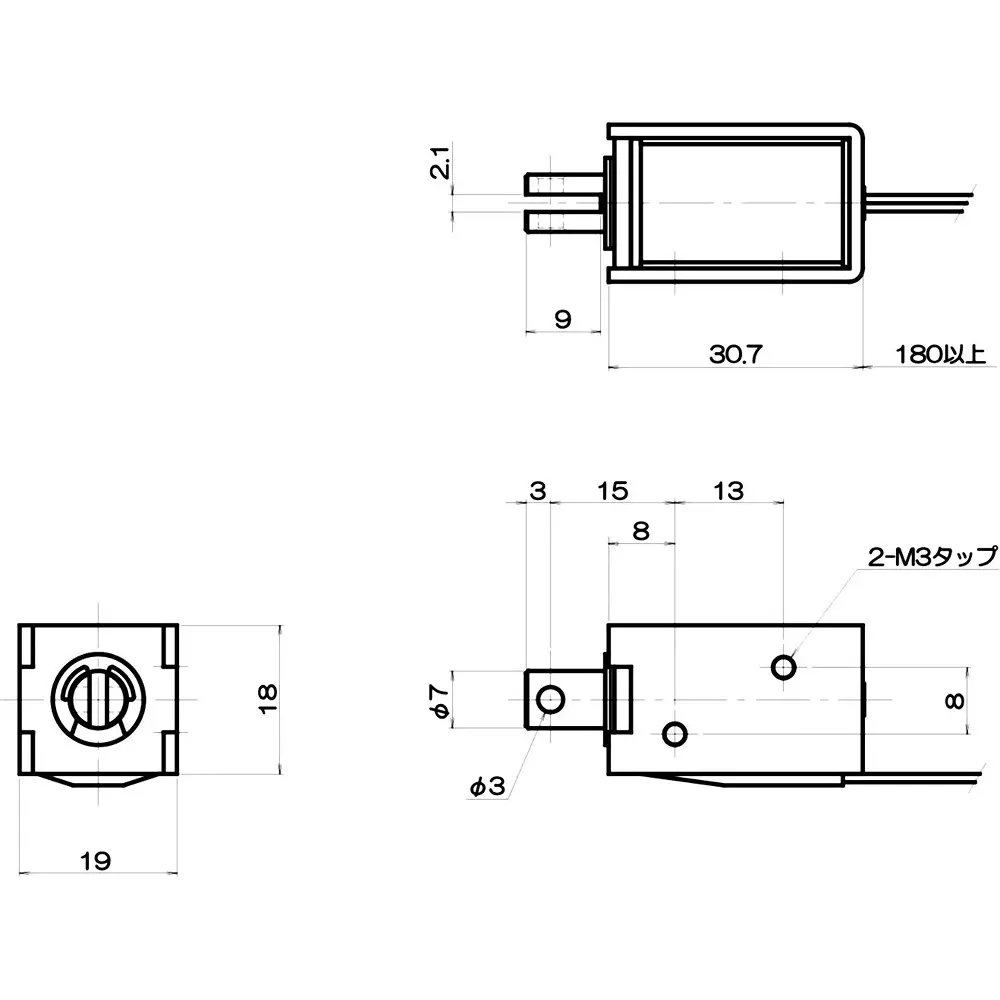

Dimension (mm) |
19x18x30.7 mm |
Maximum Stroke Length |
7 mm |
Type |
pull |
Overall Length (mm) |
30.7 (frame) |
Attracting Force (N) |
Continuous current: 0.8 / Current rate 6%: 8.2 |
Rated Voltage (V) |
DC6, DC12, DC24 |
Energization Rate |
DC 6: Continuous current, DC 12: 25%, DC 24: 6% |
