| Stroke (mm) | 6 |
| Monotaro ID | 40638868 |
| Type of Product | Pull Solenoid |
| Model No | CA08471440 |
Stroke (mm) |
6 |
Monotaro ID |
40638868 |
Type of Product |
Pull Solenoid |
Model No |
CA08471440 |
Import Country |
Direct Import from Japan |
Plunger Diameter |
8 mm |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takaha Kiko |
Mass (g) |
95 |
Resistance (Ω) |
144 |

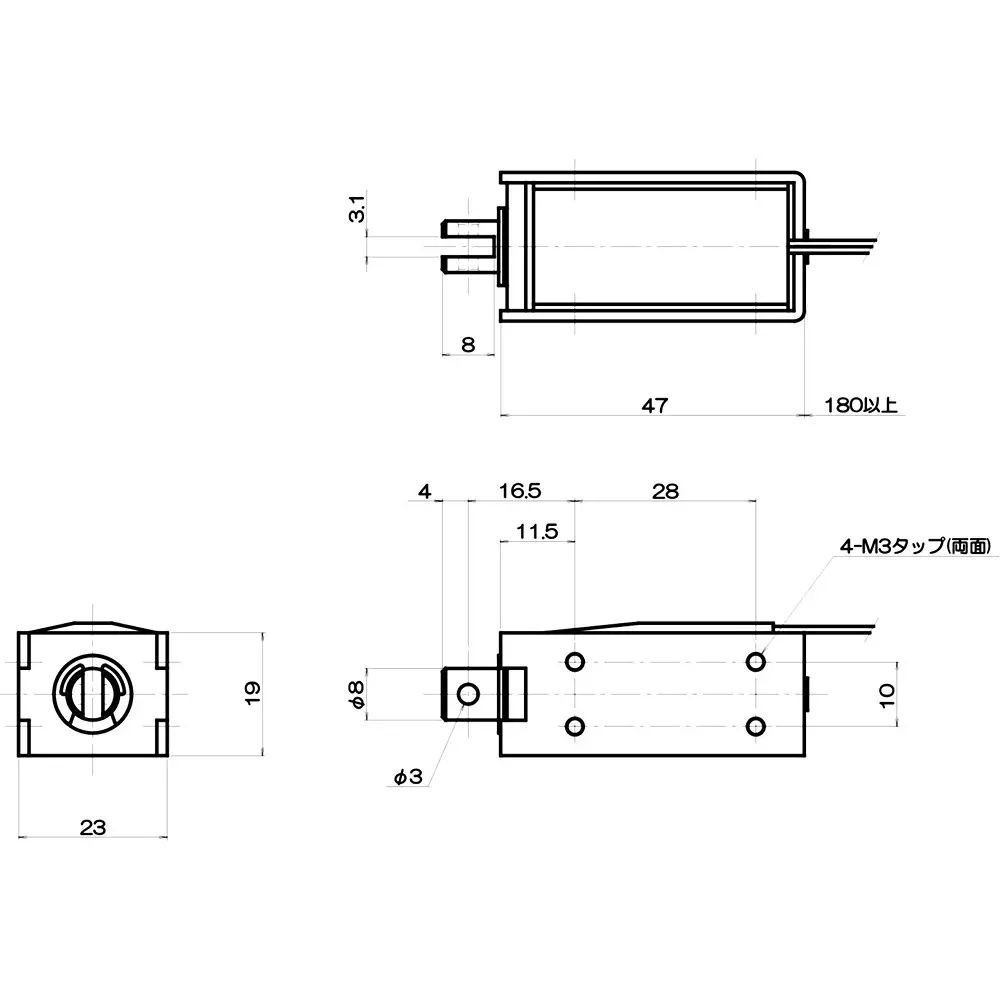

Dimension (mm) |
19x23x47 mm |
Maximum Stroke Length |
11 mm |
Type |
pull |
Overall Length (mm) |
47.0 (frame) |
Attracting Force (N) |
Continuous current: 1.8 / Current rate 6%: 9.6 |
Rated Voltage (V) |
DC 24 |
Energization Rate |
DC 24: Continuously energized |
