| Stroke (mm) | 14 |
| Monotaro ID | 40638974 |
| Type of Product | Pull Solenoid |
| Model No | CA15670033 |
Stroke (mm) |
14 |
Monotaro ID |
40638974 |
Type of Product |
Pull Solenoid |
Model No |
CA15670033 |
Import Country |
Direct Import from Japan |
Plunger Diameter |
15 mm |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Takaha Kiko |
Mass (g) |
610 |
Resistance (Ω) |
3.3 |

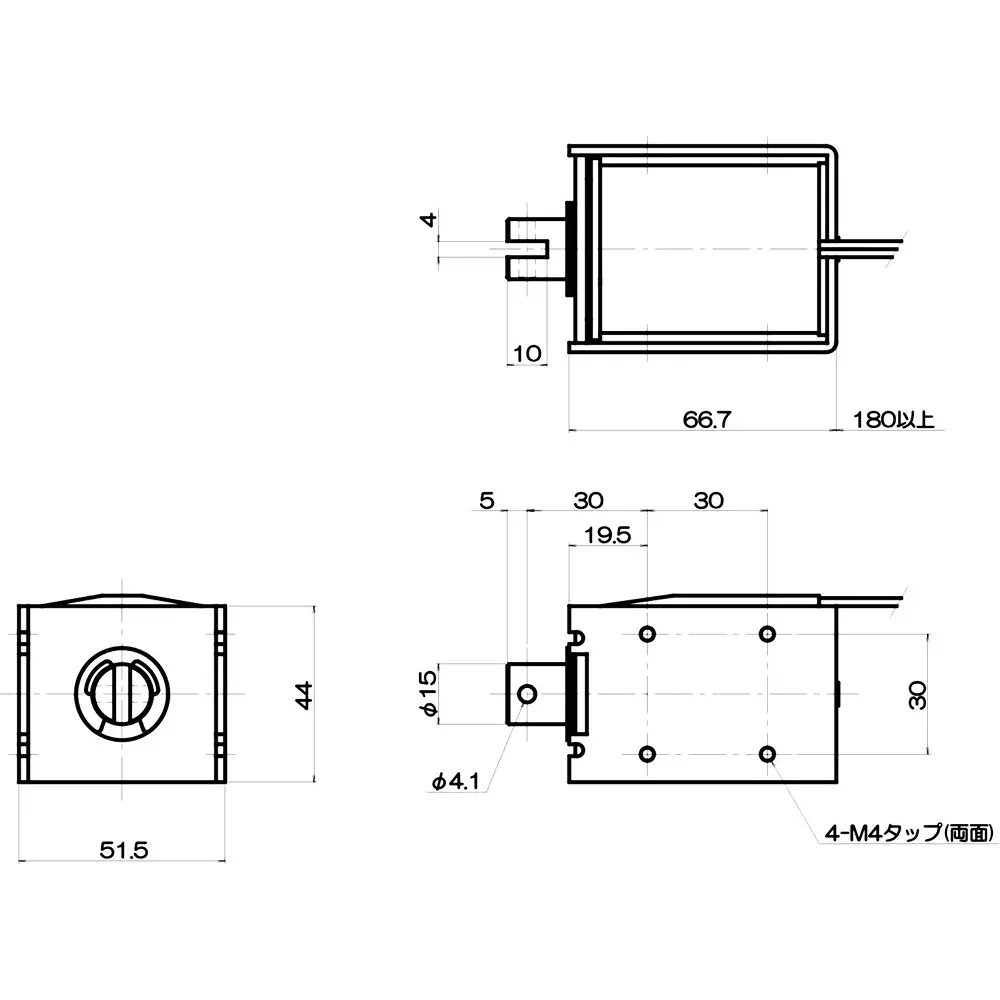

Dimension (mm) |
44x51.5x66.7 mm |
Maximum Stroke Length |
16 mm |
Type |
pull |
Overall Length (mm) |
66.7 (frame) |
Attracting Force (N) |
Continuous current: 8.6 / Current rate 6%: 45.5 |
Rated Voltage (V) |
DC6, DC12, DC24 |
Energization Rate |
DC 6: Continuous current, DC 12: 25%, DC 24: 6% |
