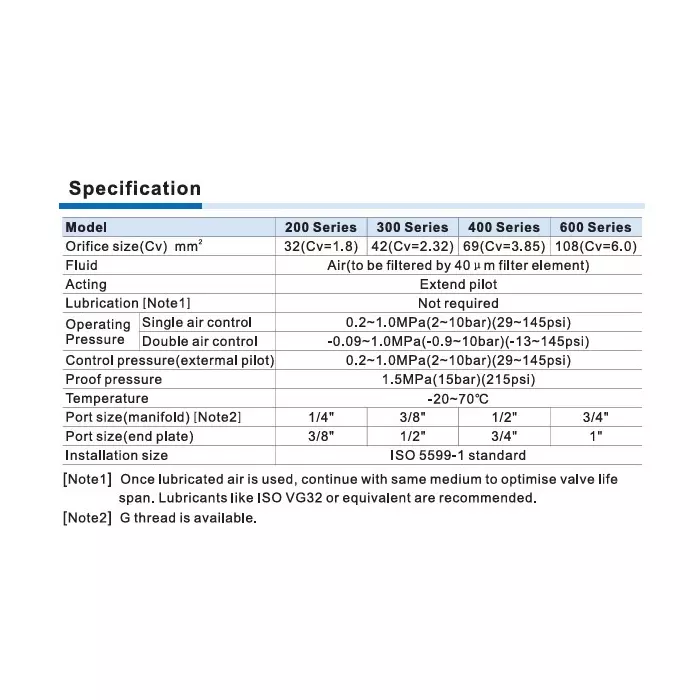

| Temperature | -20-70°C |
| Operating Pressure | Single Air Control: 2-10 Bar, Double Air Control: -0.9-10 Bar |
| Type of Product | Solenoid Valve |

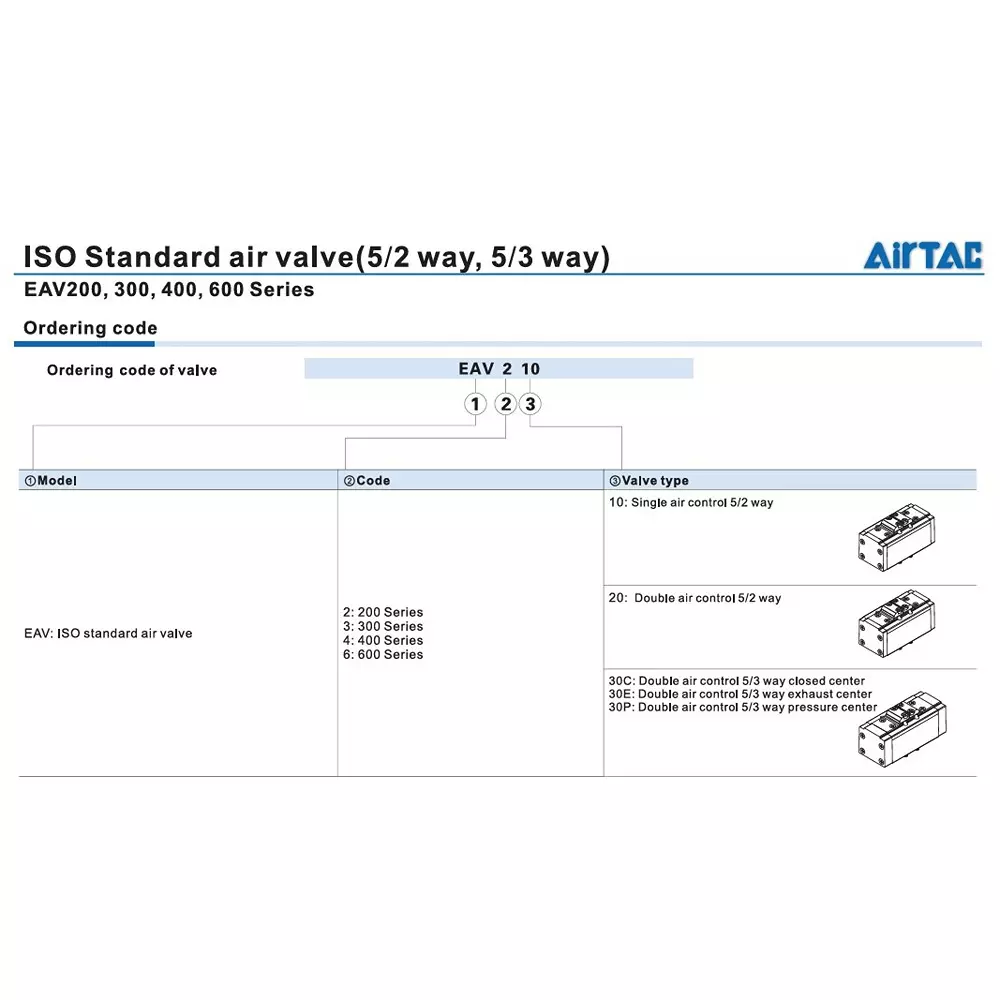

| Model No | EAV410 |
Temperature |
-20-70°C |
Operating Pressure |
Single Air Control: 2-10 Bar, Double Air Control: -0.9-10 Bar |
Type of Product |
Solenoid Valve |
Model No |
EAV410 |
Port size |
Manifold: 1/2 inch (12.7 mm), Subassembly of Plate: 3/4 inch (19.05 mm) |
Series |
EAV400 |
Fluid |
Air (to be filtered by 40 μm filter element) |
Country of Origin |
India |
Pilot |
Extended Pilot |
Way |
5/2 Way |
Orifice |
69 mm² (Cv=3.85) |
Control Pressure |
External Pilot: 2-10 Bar |
Acting Type |
Single Acting |
Installation |
Size: ISO5599-1 Standard |
Lubrication |
Not Required |
Name of Manufacturer/Packer/Importer |
A-Tech Pneumatic Private Limited |
Proof Pressure |
1.5 MPa (15.0 Bar) (215 PSI) |
