| Connection | 1/2 in G Female |
| Body Material | Brass |
| Type | 45690 |

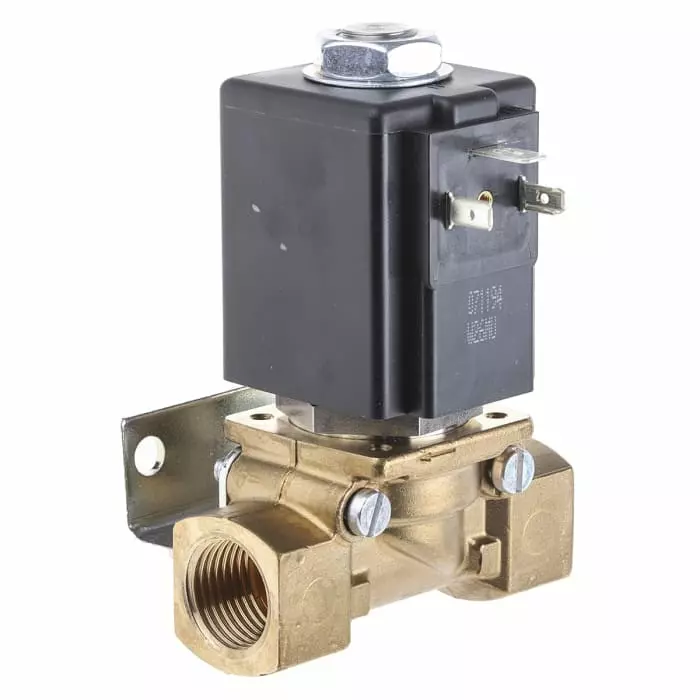

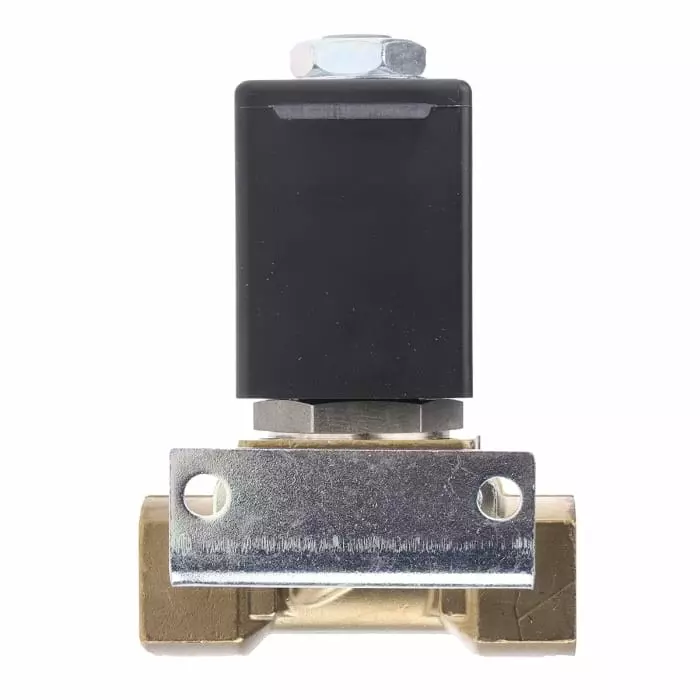

| Type of Product | Solenoid Valve |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Connection |
1/2 in G Female |
Body Material |
Brass |
Type |
45690 |
Type of Product |
Solenoid Valve |
Series |
255 |
Country of Origin |
Ger mAny |
Operations |
Direct |
Flow Rate |
0.5m³/h |
Supply Voltage |
24 V DC |
Product Code |
439212 |
Minimum Operating Temperature |
-40°C |
Maximum Operating Temperature |
+55°C |
Maximum Working Pressure |
4 bar |
Operating Temperature Range |
-40-+55°C |
Orifice Diameter |
4 mm |
Connection Size |
12.70 mm |

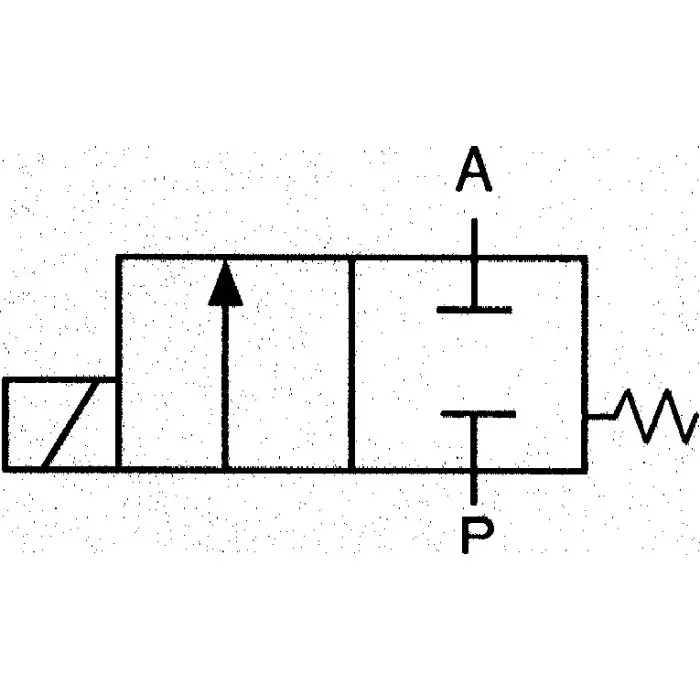

Valve Positions |
NC |
Manufacturer Part Number |
89404 |
Name of Manufacturer/Packer/Importer |
Burkert |
Suitable Applications |
Alcohol, Fuel, Hydraulic Oil, Organic Solvent, Steam, Waste Gas, Water |
Thread Standard or Connection Type |
G |
Connection Gender |
Female |
Connection Size (Inch) |
1/2 inch |
Maximum Closing Time |
30ms |
Maximum Opening Time |
80ms |
