| Connection | 25 mm |
| Body Material | PVC |
| Type | 45690 |

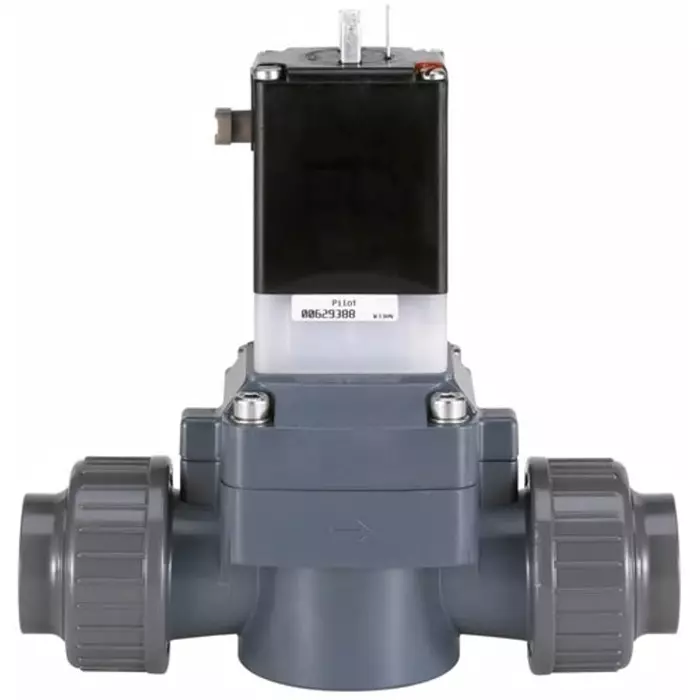

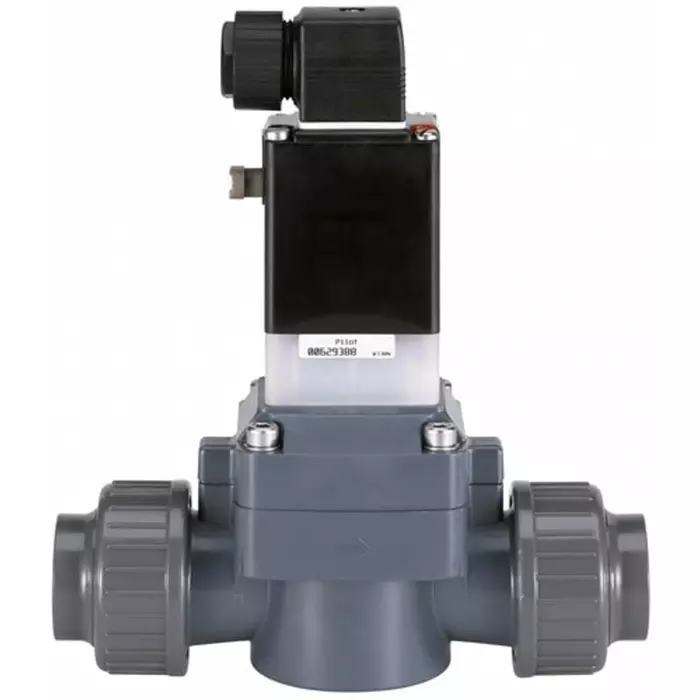

| Type of Product | Solenoid Valve |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Connection |
25 mm |
Body Material |
PVC |
Type |
45690 |
Type of Product |
Solenoid Valve |
Series |
142 |
Country of Origin |
Germany |
Operations |
Pilot |
Flow Rate |
6m³/h |
Supply Voltage |
24 V DC |
Product Code |
2490641 |
Minimum Operating Temperature |
0°C |
Maximum Operating Temperature |
+40°C |
Maximum Working Pressure |
6 bar |
Operating Temperature Range |
0-+40°C |
Orifice Diameter |
20 mm |
Servo Assist |
Yes |
Valve Positions |
NC |
Manufacturer Part Number |
42045 |
Name of Manufacturer/Packer/Importer |
Burkert |
Suitable Applications |
Aggressive Media |
Thread Standard or Connection Type |
Metric |
Connection Gender |
Female |
Connection Size (Inch) |
25 mm |
Maximum Closing Time |
4s |
Maximum Opening Time |
800ms |
