Connection | 1/8 in G Female |
Body Material | Brass |
Type | 45690 |

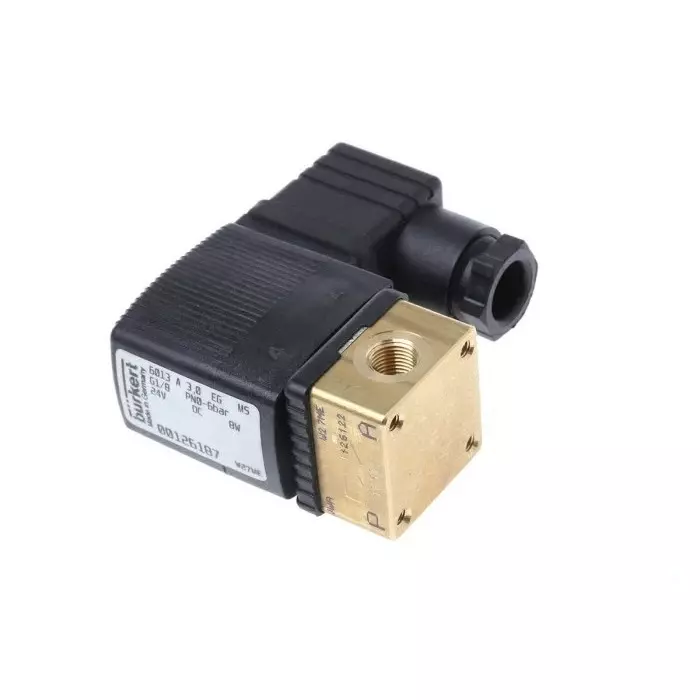

Type of Product | Solenoid Valve |
Connection |
1/8 in G Female |
Body Material |
Brass |
Type |
45690 |
Type of Product |
Solenoid Valve |
Series |
6013 |
Country of Origin |
Ger mAny |
Operations |
Direct |
Flow Rate |
0.25m³/h |
Supply Voltage |
24 V DC |
Product Code |
4787357 |
Minimum Operating Temperature |
0°C |
Maximum Operating Temperature |
+55°C |
Maximum Working Pressure |
6 bar |
Operating Temperature Range |
0-+55°C |
Orifice Diameter |
3 mm |
Servo Assist |
Yes |
Connection Size |
3.18 mm |
Valve Positions |
NC |
Manufacturer Part Number |
126187 |
Name of Manufacturer/Packer/Importer |
Burkert |
Suitable Applications |
Steam, Water |
Thread Standard or Connection Type |
G |
Connection Gender |
Female |
Connection Size (Inch) |
1/8 inch |
