Body Material | Brass |
Type | 45690 |
Type of Product | Solenoid Valve |
Series | 6011 |
Body Material |
Brass |
Type |
45690 |
Type of Product |
Solenoid Valve |
Series |
6011 |
Country of Origin |
Ger mAny |
Operations |
Direct |
Flow Rate |
0.06m³/h |
Supply Voltage |
24 V DC |
Product Code |
3070282 |
Minimum Operating Temperature |
-10°C |
Maximum Operating Temperature |
+55°C |
Maximum Working Pressure |
6 bar |
Operating Temperature Range |
-10-+55°C |
Orifice Diameter |
1.6 mm |

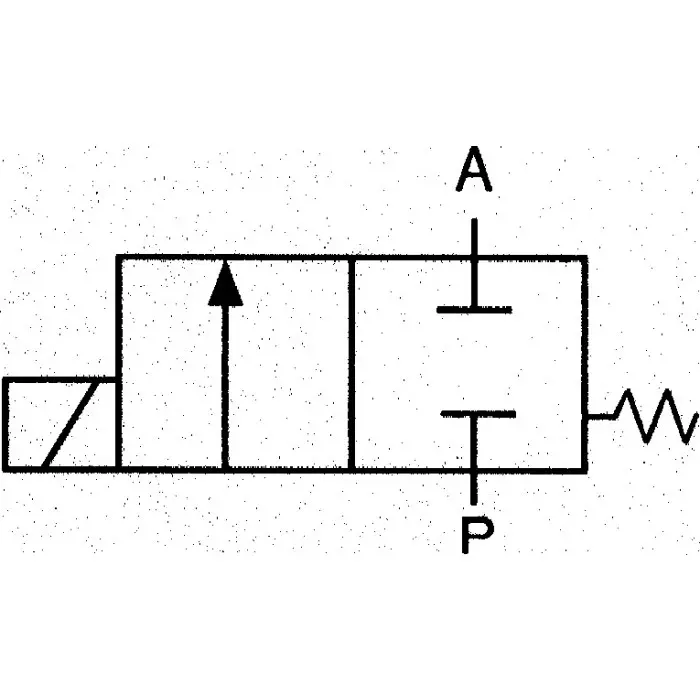

Valve Positions |
NC |
Manufacturer Part Number |
134119 |
Name of Manufacturer/Packer/Importer |
Burkert |
Suitable Applications |
Liquid, Neutral Gas, Technical Vacuum |
Maximum Closing Time |
15ms |
Maximum Opening Time |
10ms |
