| Temperature | -10 to +60°C (fluid) |
| Material | NBR (seal), Aluminium (body), Stainless steel (tube), NBR/ FKM/ Stainless steel (armature assembly), Stainless steel (spring), FE (core), Cu + Fe + Resin (Solenoid coil) |
| Voltage | 24 VDC |
| Type of Product | Solenoid Valves |
Temperature |
-10 to +60°C (fluid) |
Material |
NBR (seal), Aluminium (body), Stainless steel (tube), NBR/ FKM/ Stainless steel (armature assembly), Stainless steel (spring), FE (core), Cu + Fe + Resin (Solenoid coil) |
Voltage |
24 VDC |
Type of Product |
Solenoid Valves |
Model No |

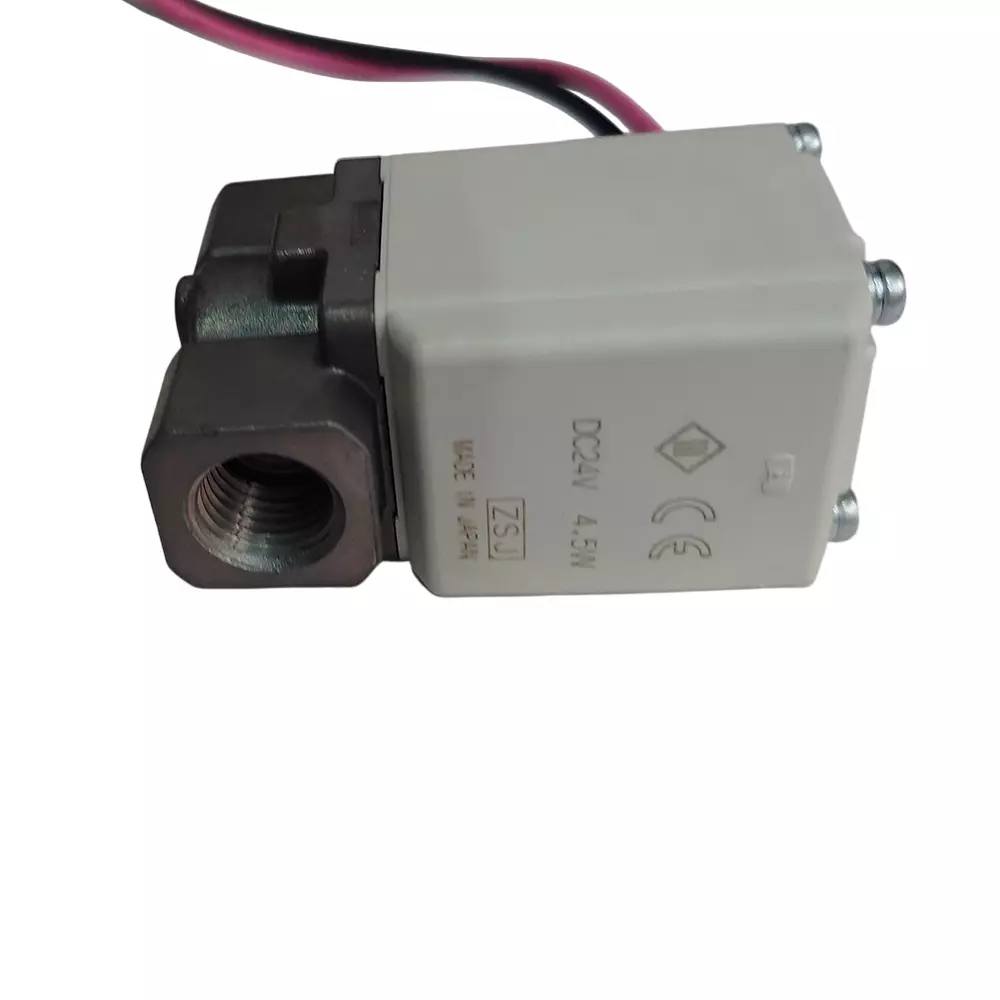

VX210EA |
Port size |
1/4 inch |
Series |
VX21 |
Pressure |
0.6 Mpa |
Valve Function |
Normally Closed (NC) |
Country of Origin |
Japan |
Function |
Electrically-actuated pneumatic solenoid direct operated / fluid process poppet valve |
Standard |
CE marking, RoHS, cURus |
No. of Port |
2 |
Insulation Class |
Coil insulation class B |
Flow |
Cv 0.41, 1.05 dm3/s, 3.78 m3/h |
Orifice Diameter |
3 mm |
Name of Manufacturer/Packer/Importer |
SMC |
Connection Type |
Rc1/4 inch threaded port, Pre-equipped with gromm. ent. port terminated with bare end flying leads |
Main Function |
Valve (Electrically actuated) |
Mounting Mode |
Single unit valve/body configuration |
Ambient Air Temperature for Operation |
-20 to +60 °C |
Coil Size |
1 |
