Ships within 25 days
View
View
View
View

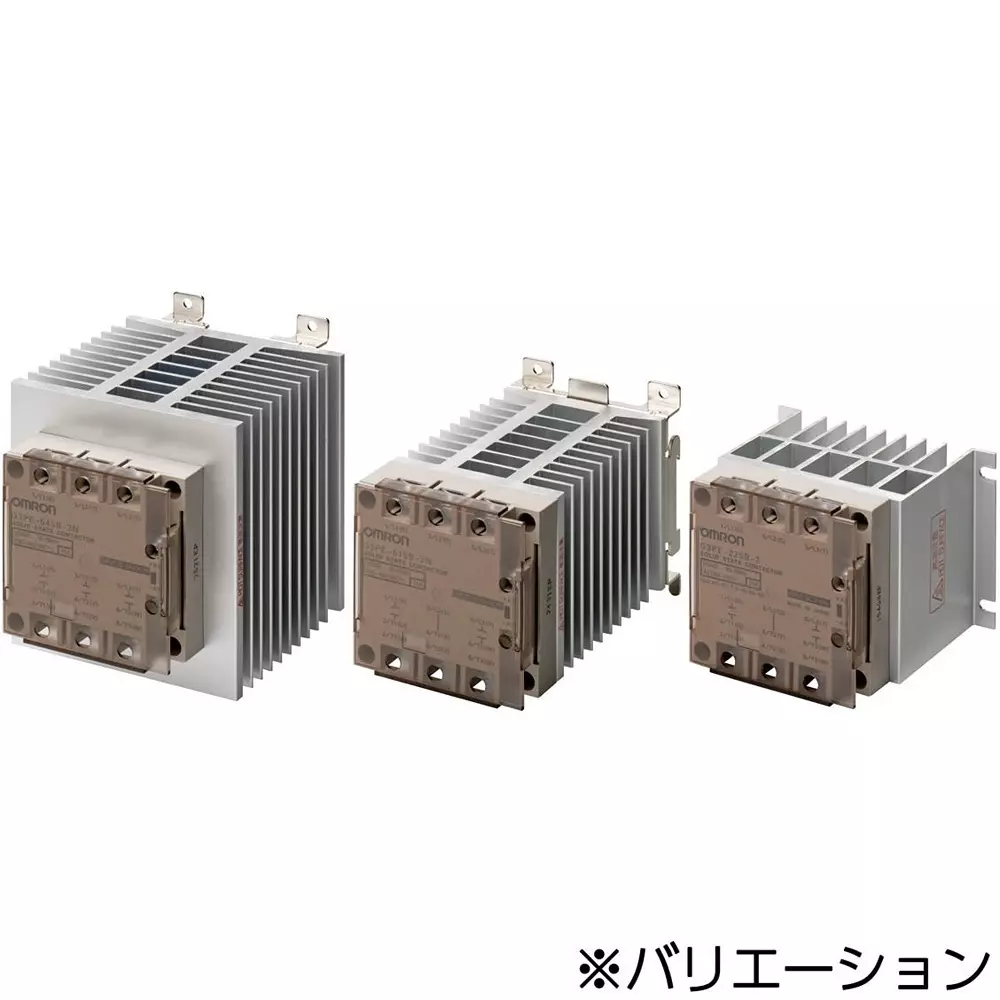

| Type of Product | Solid State Contactor |
| Monotaro ID | 63700894 |
| Model No | G3PE-235BL DC12-24 |
| Rated Load Voltage (V) | AC 100 to 240(50/60 Hz) |
Type of Product |
Solid State Contactor |
Monotaro ID |
63700894 |
Model No |
G3PE-235BL DC12-24 |
Rated Load Voltage (V) |
AC 100 to 240(50/60 Hz) |
Insulation Type |
Photo triac coupler |
Load Voltage |
AC 75 to 264(50/60 Hz) V |
Equipped with/without Zero Cross Function |
None |
No. of Phases |
Single-phase |
Ambient Humidity to Use |
45 to 85%Rh |
Suitable Load of Output |
35A, AC 100 to 240 V |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Insulation Resistance (MOhm) |
100 or more (at 500 V mega) |
Operating Temperature Range |
-30 to 80 ℃ (no condensation or freezing) |
Specifications |
●MTTFd (reference value): 1000 years or more |
Mass (Kg) |
About 0.4 |
Rated Input Voltage (V) |
DC 12 to 24 |
Storage Temperature |
-30 to 100 (no condensation or freezing) |
Protection Class |
IP20 |
Terminal Structure |
Screw terminal |
Operation Ambient Temperature (°C) |
-30 to +80 (with no icing or condensation) |
Standard |
[Certification standards] UL (File No. E64562), CSA (File No. LR35535), TUV (File No. R50124433, EN60947-4-3) |
