| Type of Product | Solid State Contactor |
| No. of Pole | 3 |
| Width | 86.7 mm |
| Length | 45.3 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Solid State Contactor |
No. of Pole |
3 |
Width |
86.7 mm |
Length |
45.3 mm |
Load Voltage |
600 V AC |
Control Voltage |
4 V DC to 32 V DC |
Country of Origin |
Mexico |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Series |
DRH |
Load Current |
18 Amp |
Product Code |
1450583 |
Input Current |
17 mA |
Mounting Style |
DIN Rail |
Depth |
95.6 mm |
Maximum Operating Temperature |
+70°C |
Manufacturer Part Number |

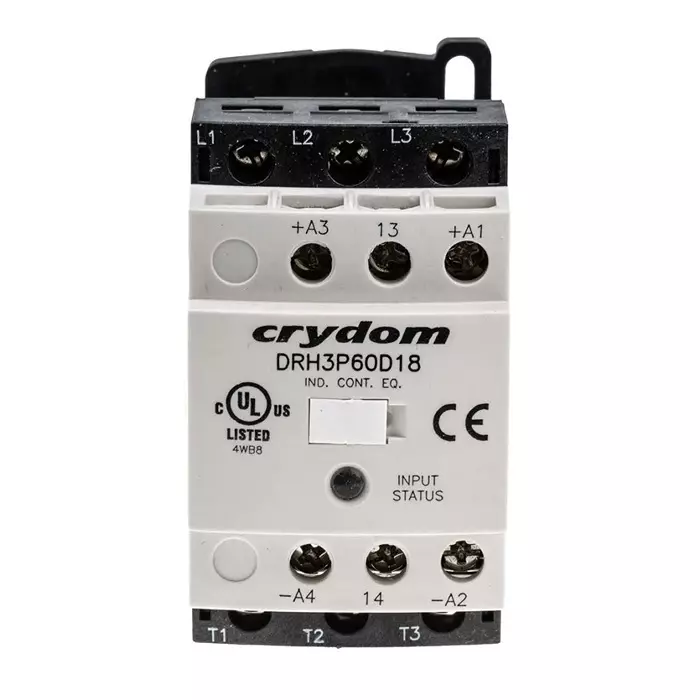

DRH3P60D18 |
Terminal Type |
Screw |
contact voltage rating (V) |
120 V AC, 200 V DC |
Minimum Operating Temperature |
-10°C |
Contact Current Rating |
18 A |
Pole and Throw Configuration |
3P |
Pack of |
1 Pc |
