| Type of Product | Solid State Contactor |
| No. of Pole | 3 |
| Width | 86.7 mm |
| Length | 45.3 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Solid State Contactor |
No. of Pole |
3 |
Width |
86.7 mm |
Length |
45.3 mm |
Load Voltage |
48 V AC to 510 V AC |
Control Voltage |
18 V AC to 30 V AC, 18 V DC to 30 V DC |
Country of Origin |
Mexico |
Name of Manufacturer/Packer/Importer |
SENSATA/CRYDOM |
Series |
DRC |
Auxiliary Contacts |
2 |
Load Current |
4.8 Amp |
Product Code |
1445969 |
Function |
Reversing |
Input Current |
32 mA |
Mounting Style |
DIN Rail |
Depth |
95.6 mm |
Maximum Operating Temperature |
+60°C |
Contact Configuration |
1NO + 1NC |
Manufacturer Part Number |

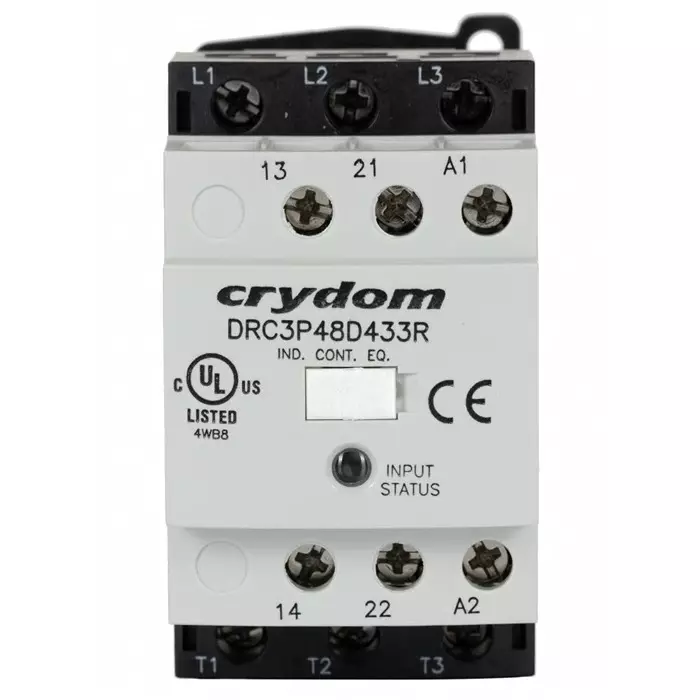

DRC3P48D433R |
Terminal Type |
Screw |
contact voltage rating (V) |
480 V AC |
Minimum Operating Temperature |
-20°C |
Contact Current Rating |
500 mA |
Pole and Throw Configuration |
SPDT |
Range |
Crydom |
Distrelec Product Id |
30128313 |
Pack of |
1 Pc |
