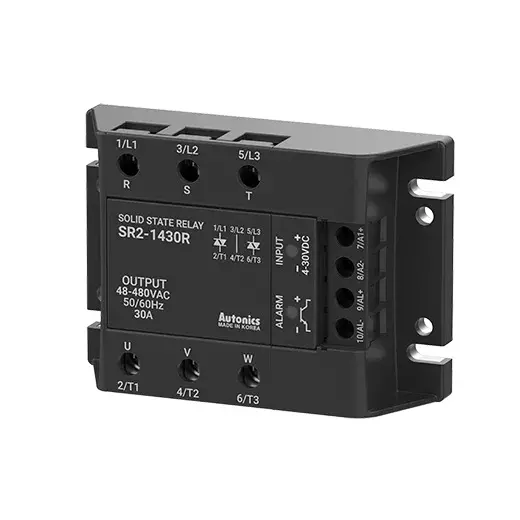

| Model No | SR2-1430R |
| Load Voltage | 48-480VAC~ |
| Type of Product | Solid State Relay |
| Mounting Type | Panel |
Model No |
SR2-1430R |
Load Voltage |
48-480VAC~ |
Type of Product |
Solid State Relay |
Mounting Type |
Panel |
Control phase |
2-Phase |
Weight |
approx. 365g(approx. 275g) |
Dielectric Strength |
2,500VAC~ |
Rated Load Current |
30A |
Country of Origin |
South Korea |
Rated Input Voltage |
4-30VDC |
Function |
Random turn-on |
Name of Manufacturer/Packer/Importer |
Teknocrats Control System (I) Pvt Ltd. |
Environment Ambient Temperature |
-30 to 80℃(in case of the rated input voltage 90-240VAC~: -30 to 70℃), Storage: -30 to 100℃( The rated load current capacity is different depending on ambient temperature. Refer to '▣ SSR Derating Curve'.) |
Environment Ambient Humidity |
45 to 85% RH, Storage: 45 to 85% RH |
