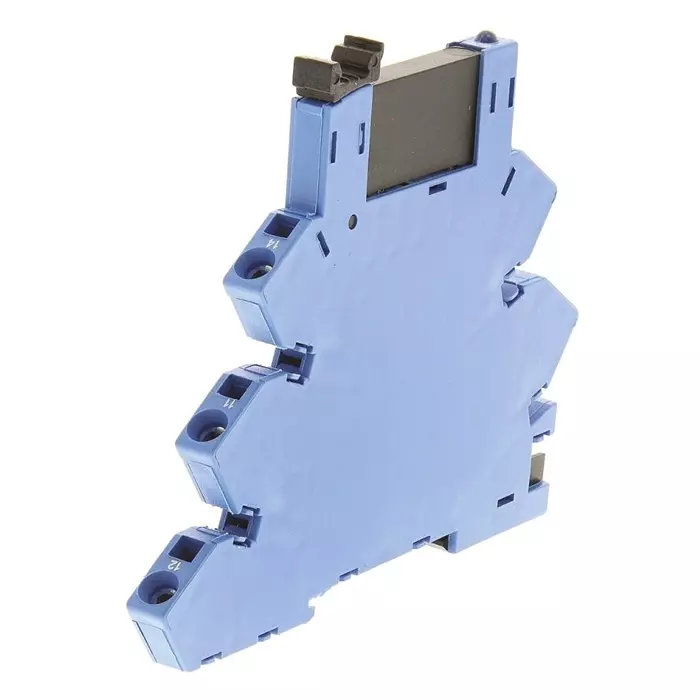

| Type of Product | Solid State Interface Relay |
| Height | 93.6 mm |
| Depth | 76 mm |
| Operating Temperature Range | -20 to +55°C |
Type of Product |
Solid State Interface Relay |
Height |
93.6 mm |
Depth |
76 mm |
Operating Temperature Range |
-20 to +55°C |
Mounting Type |
DIN Rail |
Series |
38 |
Maximum Load Current |
2 A |
Country of Origin |
Italy |
Length |
6.2 mm |
Maximum Operating Temperature |
+55°C |
Contact Configuration |
SPST-NO |
Terminal Type |
Cage Clamp |
Minimum Operating Temperature |
-20°C |
Dimension |
93.6x6.2x73.7 mm |
Switching |
DC |
Name of Manufacturer/Packer/Importer |
RS Components & Controls (I) Ltd |
Maximum Control Voltage |
30 V |
Minimum Load Current |
1 mA |
Minimum Control Voltage |
16.8 V |
Maximum Turn On Time |
0.2 ms |
Control Voltage Range |
16.8 to 30 V |
Maximum Load Voltage |
24 V DC |
Manufacturer Part Number |
38.91.7.024.9024 |
Standards Met |
CE, EAC |
Load Voltage Range |
1.5 to 24 V DC |
Off State Leakage Current |
0.001 mA |
