| Load Voltage | 48-440 V AC |

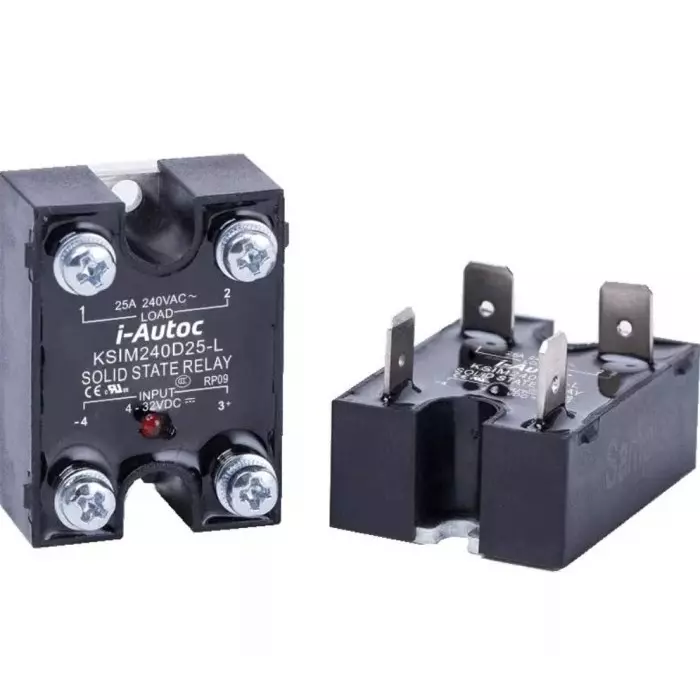

| Type of Product | Solid State Relay |
| Height | 19 mm |
| Depth | 28.1 mm |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Load Voltage |
48-440 V AC |
Type of Product |
Solid State Relay |
Height |
19 mm |
Depth |
28.1 mm |
Operating Temperature Range |
-30-+80°C |
Mounting Type |
Panel Mount |
Maximum Load Current |
0.41666666666666669 |
Country of Origin |
China |
Special Features |
Internal RC Protection Circuit, LED Indication |
Length |
38.2 mm |
Leakage Current |
5 mA |
Terminal Type |
Screw |
Dimension |
38.2x28.1x19 mm |
Relay Type |
Single Phase |
Output Device |
Triac |
Switch Type |
Zero Cross |
Name of Manufacturer/Packer/Importer |
i-Autoc |
Maximum Control Voltage |
32 V DC |
Minimum Control Voltage |
4 V DC |
Maximum Turn On Time |
1 (+1/2 cycle) ms |
Control Voltage Range |
4-32 V DC |
Maximum Load Voltage |
440 V AC |
Minimum Load Voltage |
48 V AC |
Product Code |
1025544 |
Manufacturer Part Number |
KSIM380D10-L |
Standards Met |
CE |
