Ships within 19 days
Model No
View
View
View
View

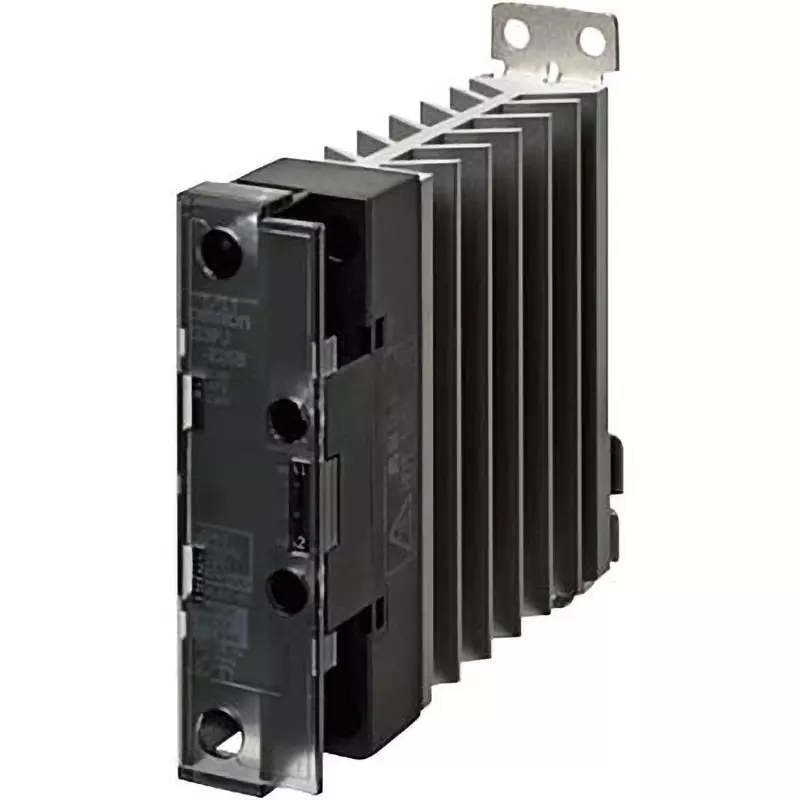

| Model No | G3PJ-515B DC12-24 |
| Mass (g) | About 240 g |
| Voltage Drop when Output Turned ON | 1.8 V (RMS) or less |
| Rated Load Voltage (V) | AC100~480 (50/60 Hz) |
Model No |
G3PJ-515B DC12-24 |
Mass (g) |
About 240 g |
Voltage Drop when Output Turned ON |
1.8 V (RMS) or less |
Rated Load Voltage (V) |
AC100~480 (50/60 Hz) |
Operation Ambient Temperature |
-30°C to +80°C (With No Icing or Condensation) |
Insulation Type |
Photo Triac Coupler |
Operation Indicator Lamp |
Yes (Orange) |
Insulation Resistance |
100 mΩ or more (with DC 500 V Mega) |
Equipped with/without Zero Cross Function |
Included |
Operating Voltage Range (V) |
DC9.6~30 V |
Rated Voltage (V) |
DC 12-24 |
Ambient Humidity to Use |
45~85%RH |
Leakage Current (mA) |
20 mA or less (at 480 VAC) |
Monotaro ID |
24414565 |
Type of Product |
Solid State Relay for Heaters |
Terminal Shape |
Screw Terminal |
Series |
G3PJ Series |
Storage Temperature Range |
-55 to +125°C (With No Icing or Condensation) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Withstand Voltage |
AC4000 V/min 50/60 Hz |
Terminal Structure |
Input Terminals: Screw Terminals Output Terminals: Screw Terminals |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Input Voltage (V) |
DC12~24 |
Input terminals |
Screw Terminal |
