Ships within 19 days
Model No
View
View
View
View

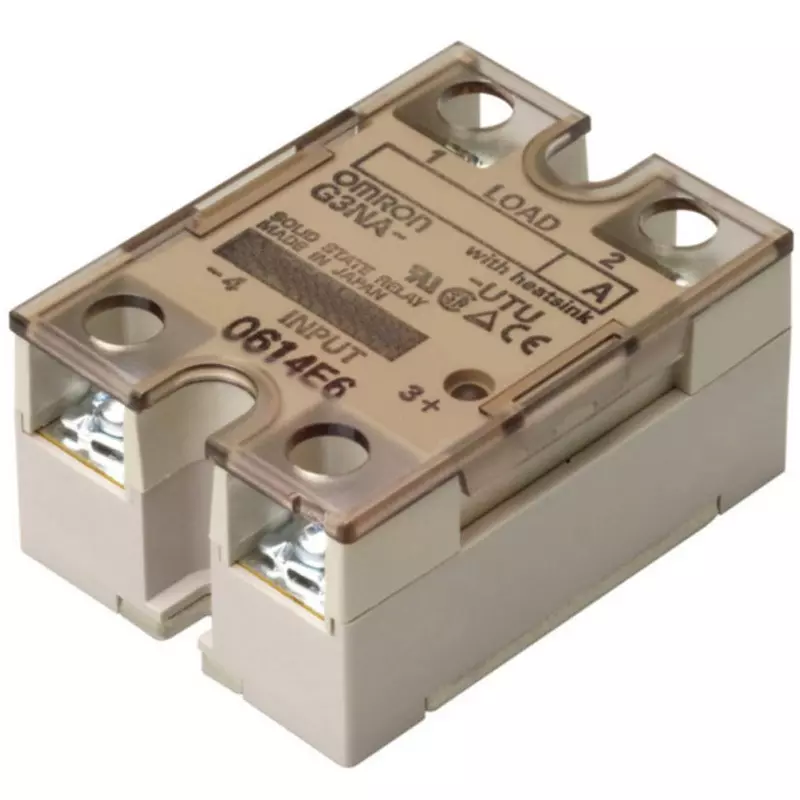

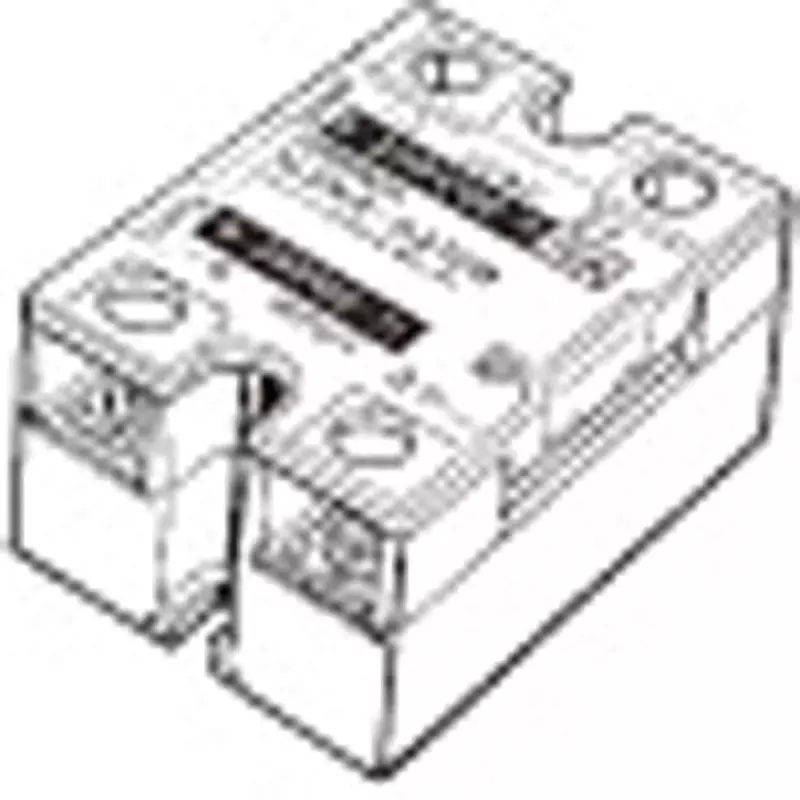

| Model No | G3NA-D210B-UTU-AC100-240 |
| Load Voltage | DC4~220 |
| Mass (g) | About 70 g |
| Voltage Drop when Output Turned ON | 1.5 V or less |
Model No |
G3NA-D210B-UTU-AC100-240 |
Load Voltage |
DC4~220 |
Mass (g) |
About 70 g |
Voltage Drop when Output Turned ON |
1.5 V or less |
Rated Load Voltage (V) |
DC5~200 |
Operation Ambient Temperature |
-30°C to +80°C (With No Icing or Condensation) |
Insulation Type |
Photo Coupler |
Operation Indicator Lamp |
Yes |
Insulation Resistance |
100 mΩ or more (with DC 500 V Mega) |
Input Impedance |
72 kΩ±20% |
Rated Voltage (V) |
AC100-240 |
Suitable Load of Output |
10 A, DC5 V~200 V |
Monotaro ID |
46626797 |
Type of Product |
Solid State Relay |
Operating Temperature Range |
-30~80°C (No Condensation or Freezing) |
Series |
G3NA Series |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Structure |
Screw Terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Input Voltage (V) |
AC100~240 |
Storage Temperature |
-30 to +100°C (No Condensation or Freezing) |
